An elementary book on electricity and magnetism and their applications (1919)
Jackson, Dugald C. (Dugald Caleb), 1865-1951, Jackson, John Price, b. 1868, Black, Newton Henry, b. 1874 · New York, The Macmillian Co · leaf 358

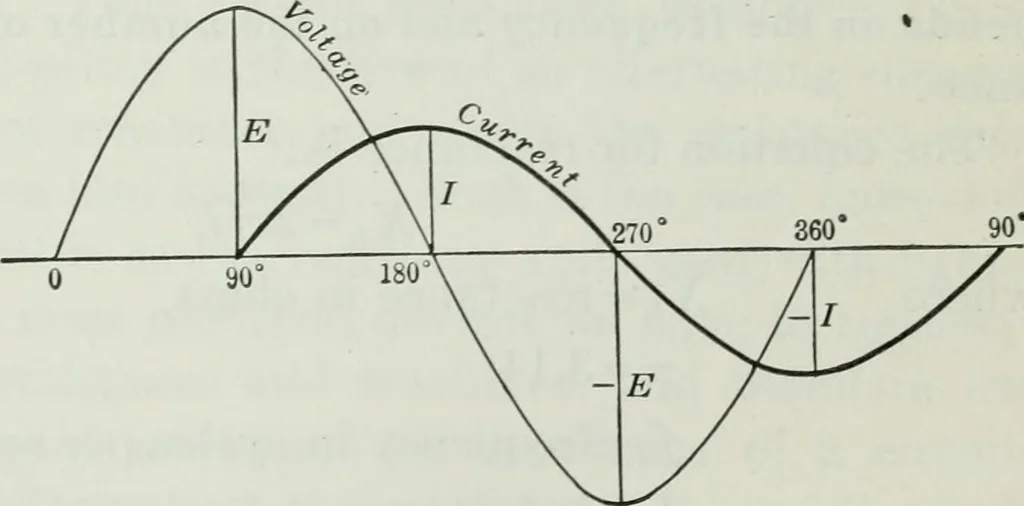

The result is, aswas shown in sec-tion 219, that ina circuit havinginductance an al-ternating currentis always retarded a certain amount behind the alternatingvoltage which sets it up. In short, inductance makes an alter-nating current lag behind its voltage (Fig. 225). This sameretardation makes… … Fig. 225. — Current lags behind voltage in inductivecircuit. 328 ELECTRICITY AND MAGNETISM seen, upon the magnetic effect which the different parts of thecircuit have on each other, and also upon the frequency of thecurrent. For example, if we have a certain eoil whose inductance is 1 henry,and use…
