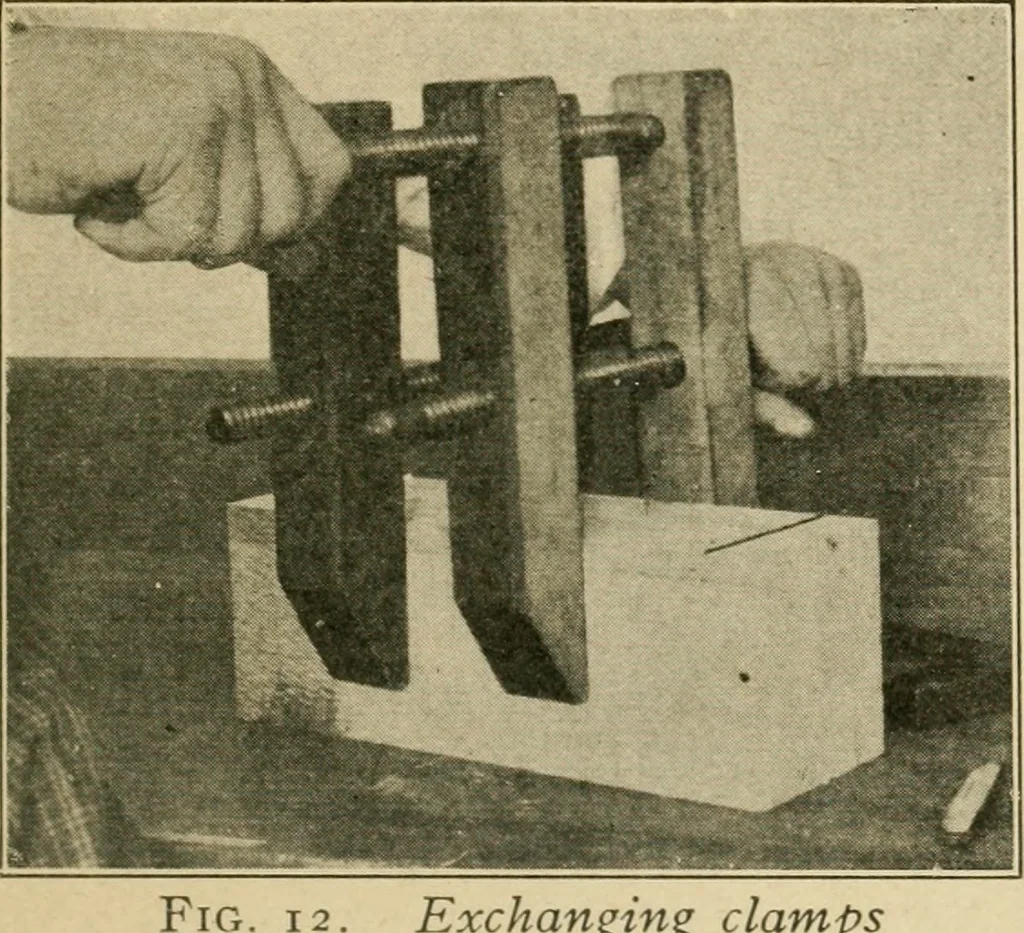

2), then remove the first one anduse the try-square again (Fig. 11). Compare thesedirections with those given on page 21. Before clamping pieces together in this mannertheir sides must be parallel. If for any reason theyare not parallel and cannot be made so, only onepiece should be lined at first;… … Exchanging clamps After drawing a line entirely across each end,remove the clamp and complete the lining on each piece separately.Set the gaugeand draw thelines nearer theface side for allthe tenons,drawing a line oneach edge andacross the ends.Set the gaugeto the distanceof the back sideof the…
