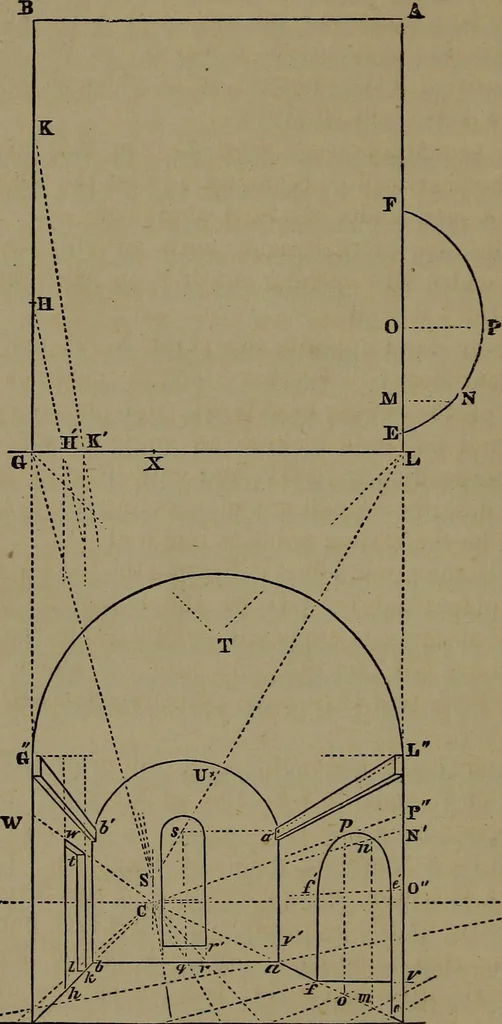

will be the perspective of the floor. The front wall of the room, GL, being taken as the perspectiveplane, the intersection of the room with that plane will be its ownperspective, m full size and real form. Hence make LL and GGequal to the height of the walls ; and, supposing the ceiling to… … ft FI Q aO M Eli Fig. 55. MISCELLANEOUS PROBLEMS. 101 plane. Then draw its edges towards C, limiting it by a horizontaland vertical line where its lower back edge, on each wall, meetsthe vertical lines from a and 5. QC is the perspective of a perpendicular through the centre ofthe floor. Hence qs…
