An elementary manual of radiotelegraphy and radiotelephony for students and operators (1916)
Fleming, J. A. (John Ambrose), Sir, 1849-1945 · London, Longmans, Green & co. · leaf 271

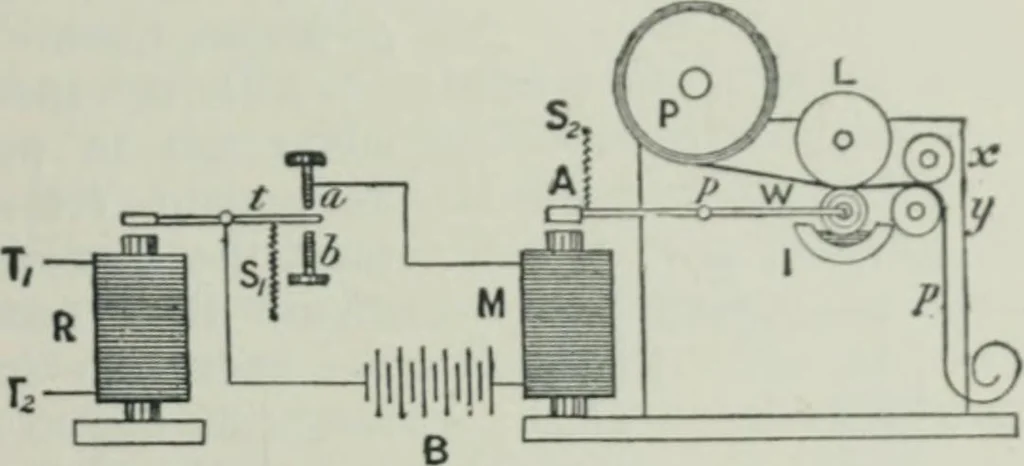

ws:—When an electric wave lalls uj^on the antennait excites oscillations in the antenna. These are transformed bythe oscillation transformer or receiving jigger, as it is called, andthese oscillations pass through the coherer tube, causing it tobecome conductive. This then passes a current from the… … Fig. 13.—Scheme of Connections of Relay and Morse Inker. R, lleluy magnet. T\, T-i, Terniinals of relay. a, 6, Reliiy coDtacts. (, Kelay tongue. J/, Morse iuker magnet. B, Local battery. W, Ink wheel. P, Paper strip wheeL /. Ink well. f>. Paper tape. once taps the coherer tube back to a…
Radio · Telegraph, Wireless · Telephone, Wireless
