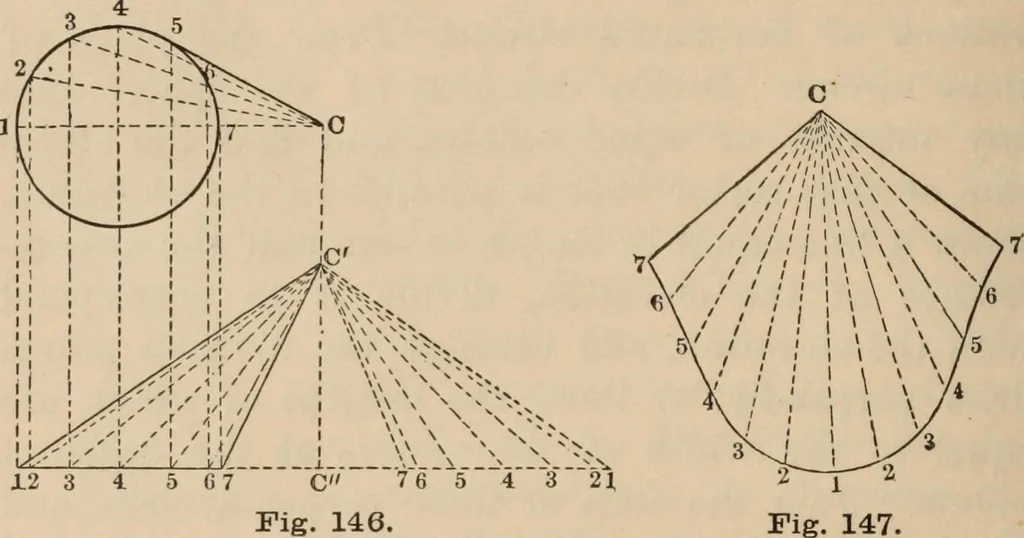

of an <^~syoblique cone; base, ^ in. in diame- Fis- 145- ter, l^- in. pitch, and axis 45° with the base. 120 MECHANICAL DRAWING. Solution.—Draw a plan and elevation of the cone,and divide the plan of the base into any numberof equal parts. Draw the plans and elevations ofthe elements of the cone… … Fig. 147. To ascertain the length of the foreshortenedsides of these triangles, draw the pitch line CCand extend the base of the cone beyond it. Layoff on this extended base from c the lengths of theplans of the elements of cone, cl, c2-cl. Joincl, c2-c7, and these lines are the true lengths ofthe…
