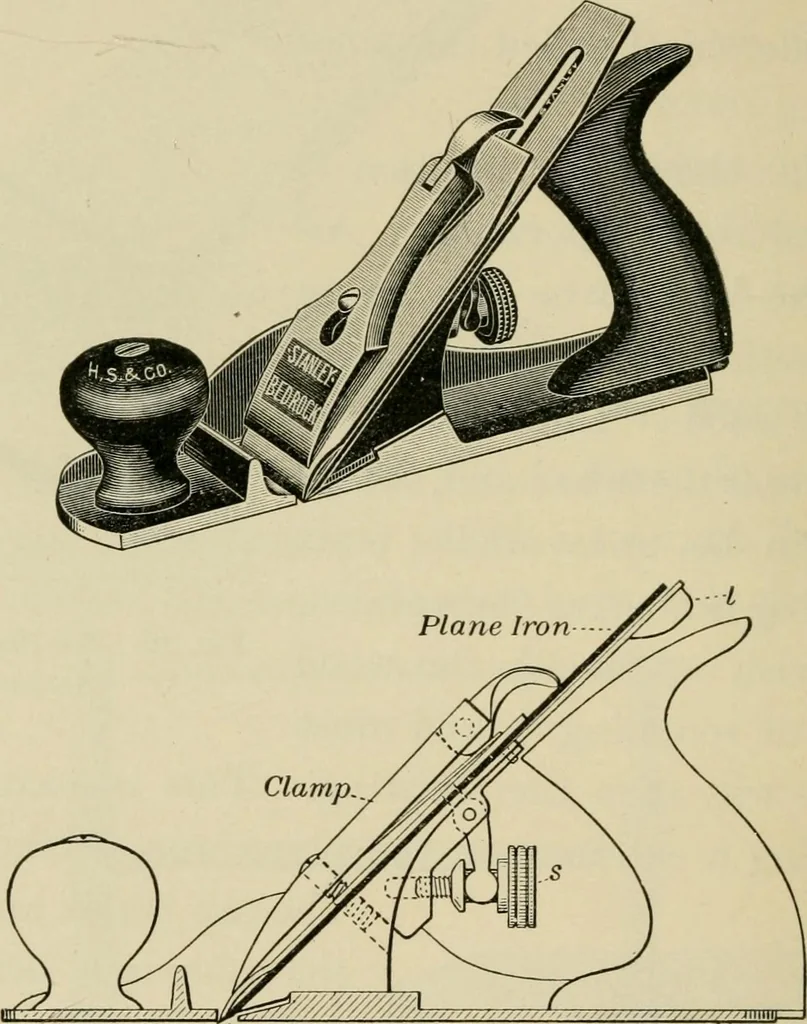

EiG. 21. Plane Iron, Cap, and Set Screw 18 ELEMENTARY WOODWORKING the throat of the plane by a clamp (Fig. 22). The open-ing on the bottom of the plane through whicli the cut-ting edge protrudes is called the mouth of the plane. … Toe --Mouth Fig. 22. Sectional Views of Iron Plane 9. Adjustment of Plane. There are two ways of adjust-ing a modern iron plane, — by means of the set screw s^and of the lever I. CUTTING TOOLS 19 Screw s lowers or raises the plane iron so that wemay take a thin or thick shaving, and lever I…
