Blessing, George F. (George Frederick), 1875-1921, Darling, Lewis A. (Lewis Andrew) · New York, J. Wiley & sons; [etc., etc.] · leaf 114

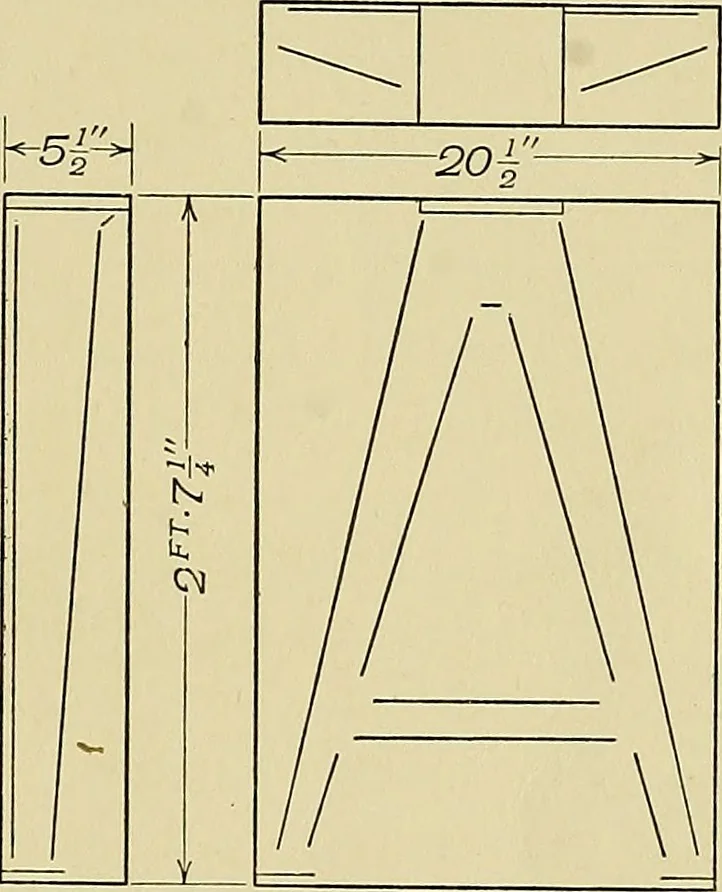

be drawn on the sheetwhich has a working space of only ,16 by 11 (see page 106,Fig. 73). The largest scale possible, if the part is representedvertically on the sheet, will next be determined. Dividing 11by 42 gives approximately 0.26, and, referring to § 60, page 91,it is seen that the nearest… … 94 ELEMENTS OF DRAWING When it is desired to represent a number of parts on a singlesheet of fixed size, each part should be handled as describedabove. After the scale has been decided on, the rectanglesshould be laid out very lightly on the sheet and arranged sym-metrically before beginning the…
Mechanical drawing
