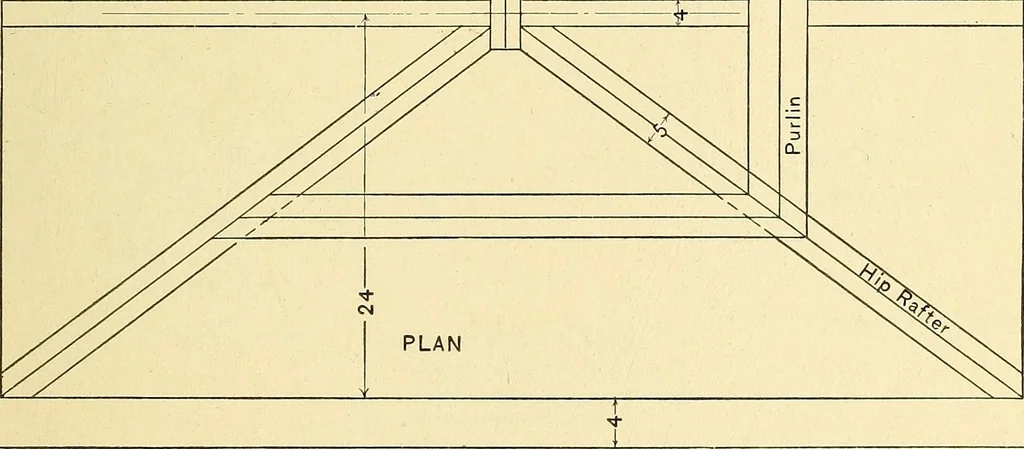

rp- … HIP RAFTER. Determine length—down cut-heel cut— side cut — top bevel. JACK RAFTER. Determine side cut. PURLIN. Determine down cut — side cut-angle between face and end. Determine the bevels, cuts, and lengths of roof members, as above. (Art. 87, page OO, inch. Space required for the problem, 7 x lO…
