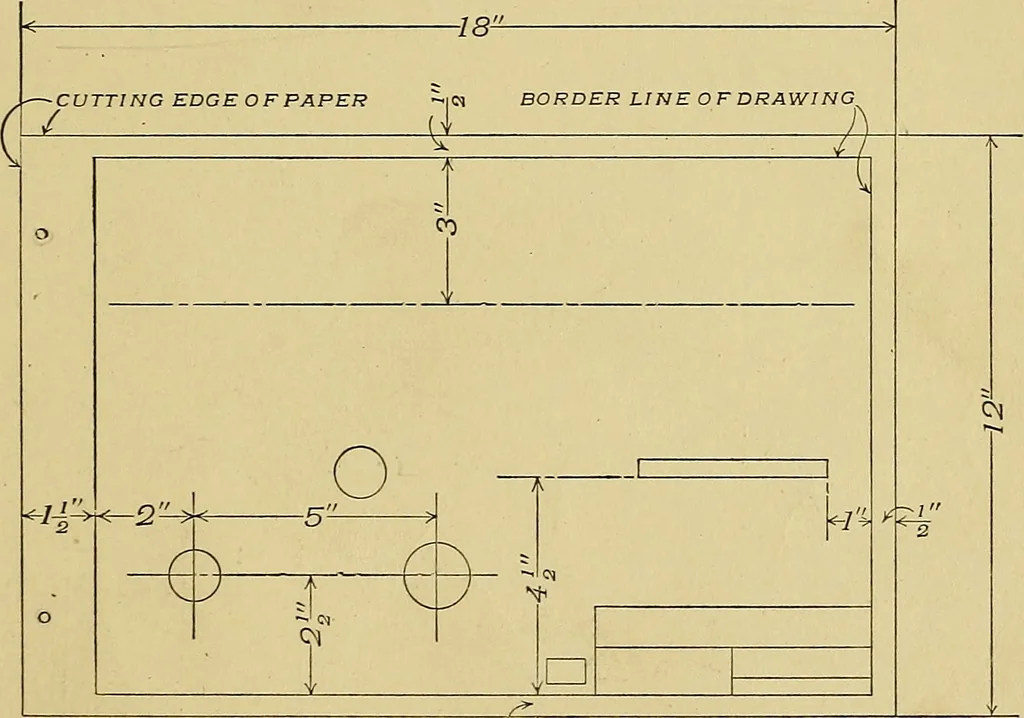

Fig. 78. — Perspective Fig. 79. —Perspective of Fiberof Key. or Steel Washer. Fig. 80. —Perspectiveof Special Nut. Study carefully the Introductory, page 71, § 52, and DetailDrawings, page 85, §57, before attempting to draw. Also studythe location and learn the purpose of each part on the… … Fig. 81. — Layout of Drawing C-ioi. the complete detail drawings of these parts, drawn to a reducedscale, and their location on the sheet is shown in Fig. 81. Asit is essential to be able to arrange the views of a drawingsymmetrically on the sheet, this is the only drawing in whichthe arrangement…
