A recording device for indicating (a) the flow of water in pipes, (b) the speed of boats (1909)
Baldwin, Frank Boyd, Hiveley, Oscar George · leaf 20

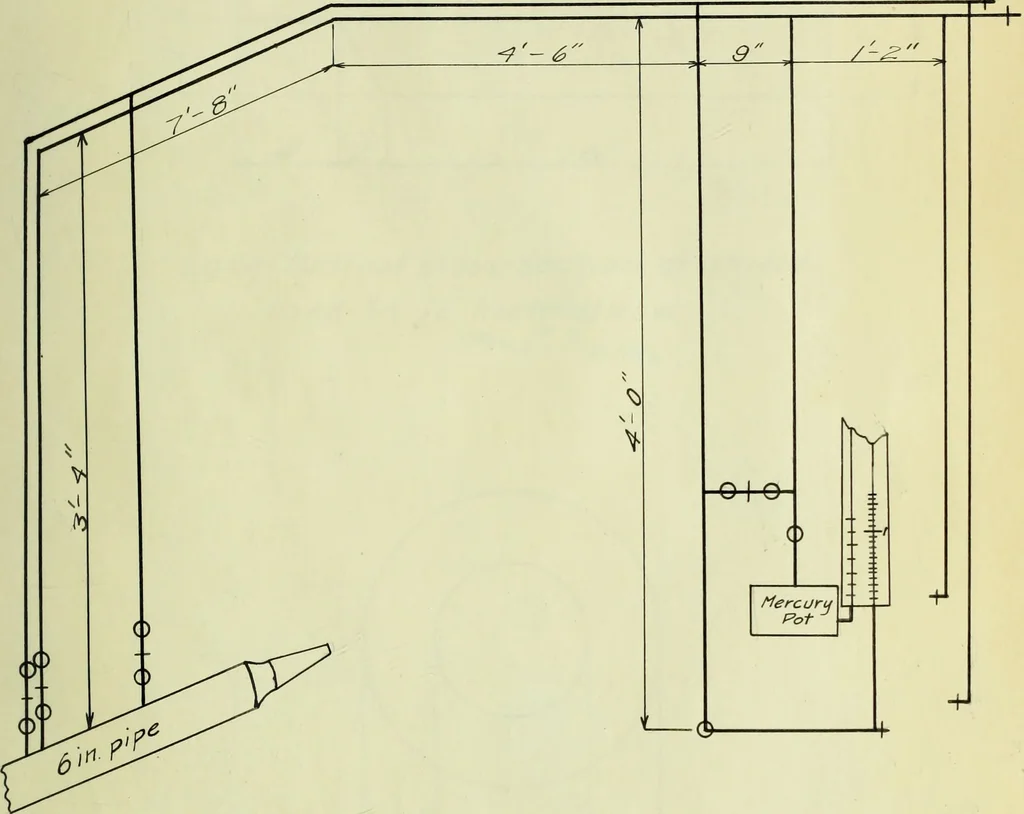

, gage number 18, and a detailed sketch as shown in thefigure will explain its use. The entrance to the shiald has a6-inch projection inwards and this schea© for creating a auctionthrough the shield when the nozzle stream was in action, provedvery satisfactory. For use with the 4-inch nozzle, the… … Sketch of F//p//7j JHydraulics · Boats and boating · Piezometer · Speedometers · Theses
