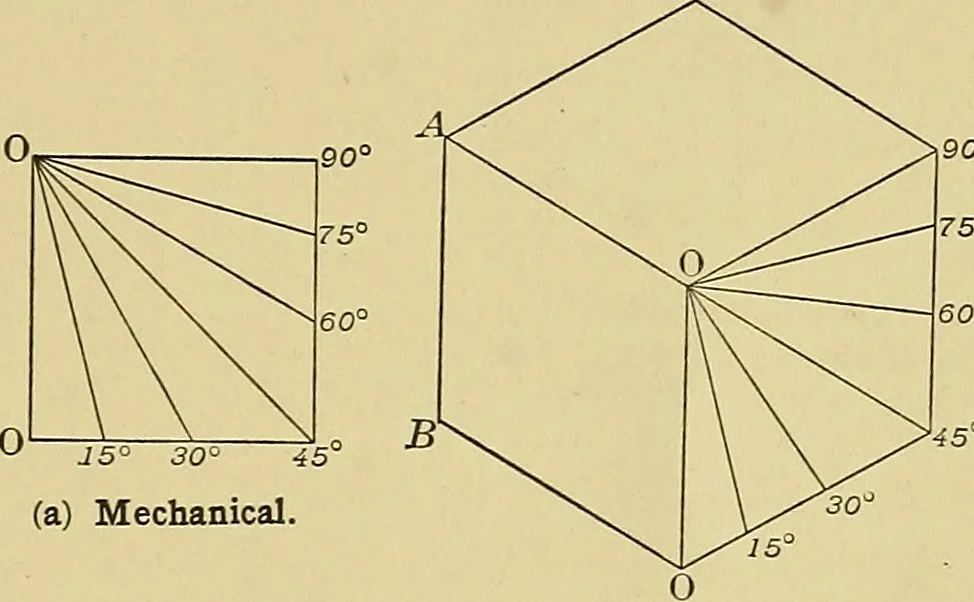

of theselines determine the isometric position of the required points. Fig. 126 (b) shows the figure in the horizontal and in the twodifferent vertical isometric planes. 123. Isometric Drawing of a Cube Cut by a Plane. Assumethe cube cut by a plane through its edge and at any angle. Firstdraw one… … (a) Mechanical
