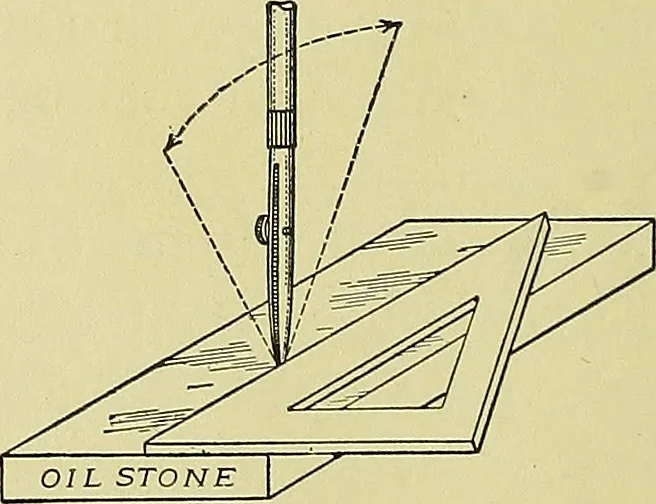

itepaper. Next, keeping the pen per-pendicular to the surface of a flat,close-grained oilstone, move backand forth until the nibs are square and of equal length. The nibs arethen rounded to a radius of onethirty-second of an inch by ruling aline on the oilstone and continuallychanging the… … Fig. 21.—Rounding the Nibs ofthe Pen. DRAWING INSTRUMENTS AND MATERIALS 23 must be taken that the rounded shape of the end is not altered;also a wire edge must not be produced, as this will cut thesurface of the paper or tracing cloth. To test the condition of the pen, clean it thoroughly and drawa…
