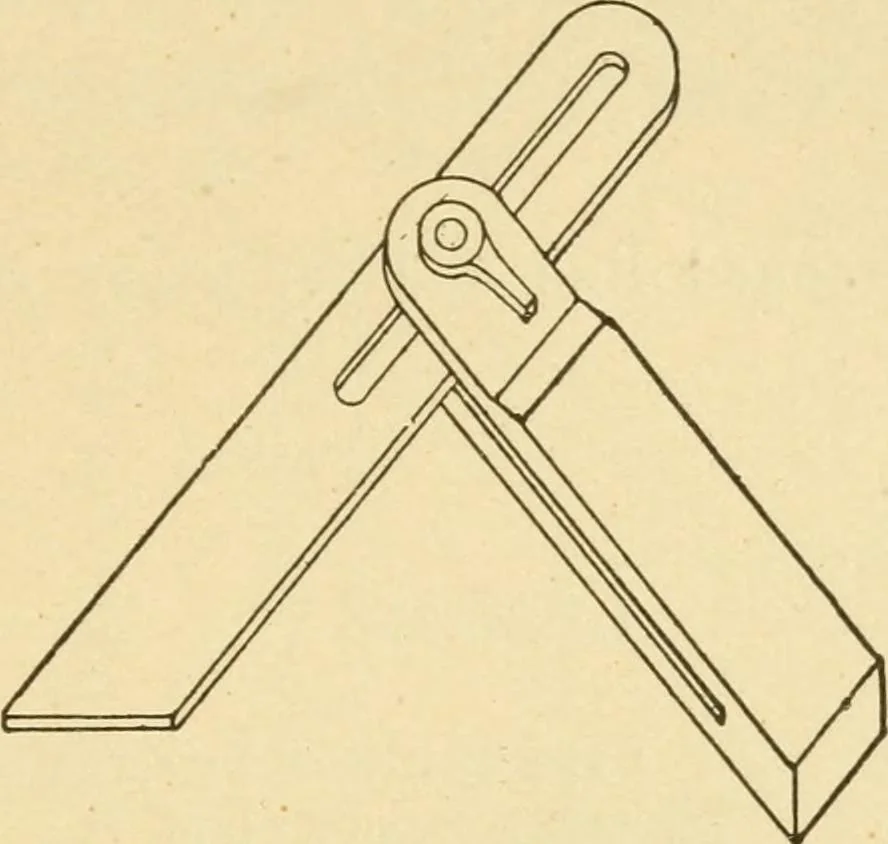

Fig. 62. Prohlem IV. Use of Bevel. — In making lines other thanat right angles to the edge of a board an adjustable square orbevel is needed, as in Fig. 63. It is held and used the sameas the try-square. Prepare a board, as directed in connection with Fig. 52, and USE OF TEY-SQUAEE AND BEVEL. 31… … Fig. 63. lines around the board in a manner similar to Problem I.,squaring across the edges and bevelling across the oppositeside. The work will appear as in Fig. 64.
