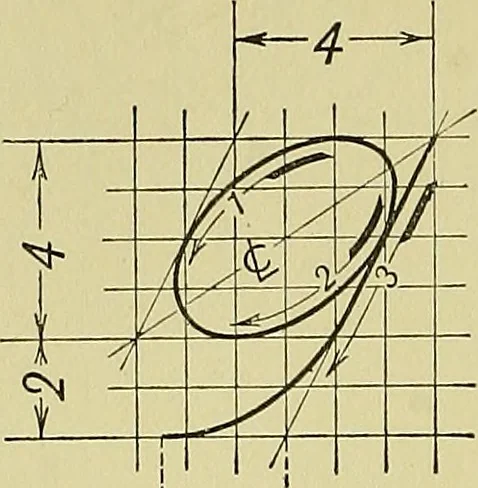

_equal to its width and is the same as forthe 0 (see this page). The body of the a, T ^l d, g, and g should be made with two strokes, as shown; stroke#3 Hes along the slope guide hne. 64 ELEMENTS OF DRAWING … but stroke #3 continues to guide line #1. d repeats a, except that stroke #3 beginsat guide line ^4. g repeats a but h—4- stroke #3 continueswith a sweepingcurve to guide hne #1. q exactly repeatsthe a construction
