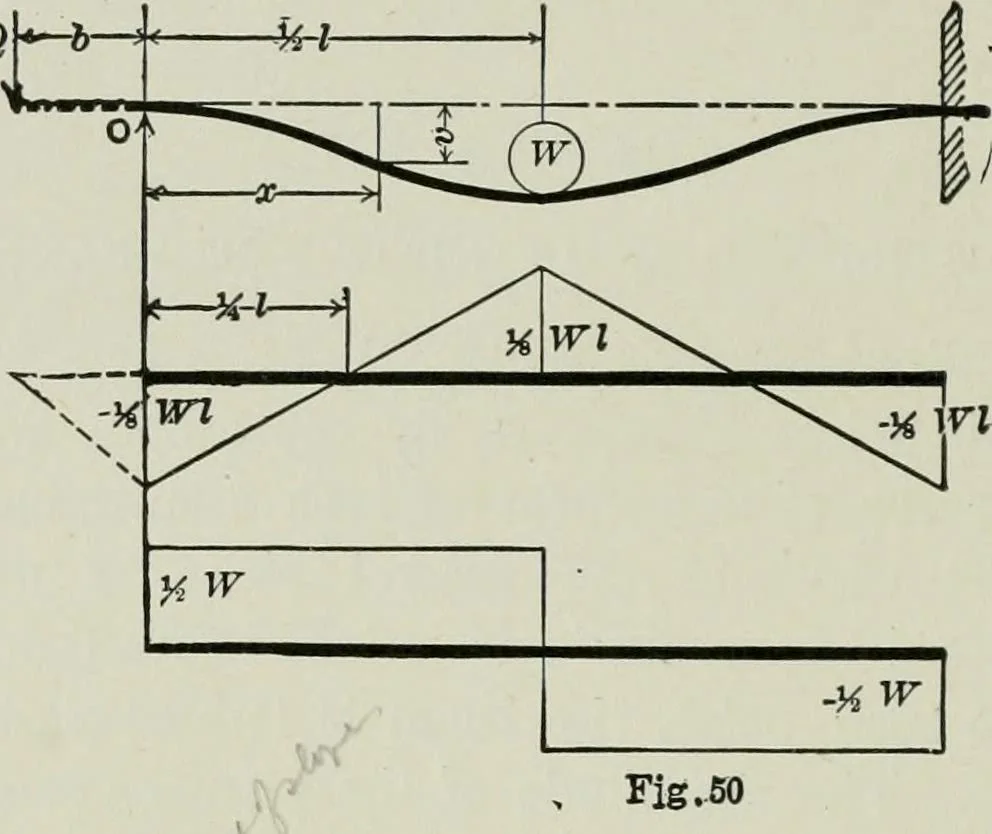

appHed at each point of support (as at the left), of a magnitudejust sufficient to keep the tangent there horizontal. The reaction at either end will then be hW + Q, while theshear between the points of support will still he±hW. Forvalues of ;x: < |/, M,,= -Q{b + x) + (;iW + Q)x = ^Wx-Qb. 107… … .>.\ Fig.50 /72ni T Slope is zero when x = o; .. C = o. Also slope is zero when o = ^VT^/2_iQW. -Qh^ -IWl, the negative bending moment at either end. That it is negativeappears by making :r = o in Mx above. If this value of Qh is substituted in the first equation, givingMx=^\W{x—\l)i the point…
