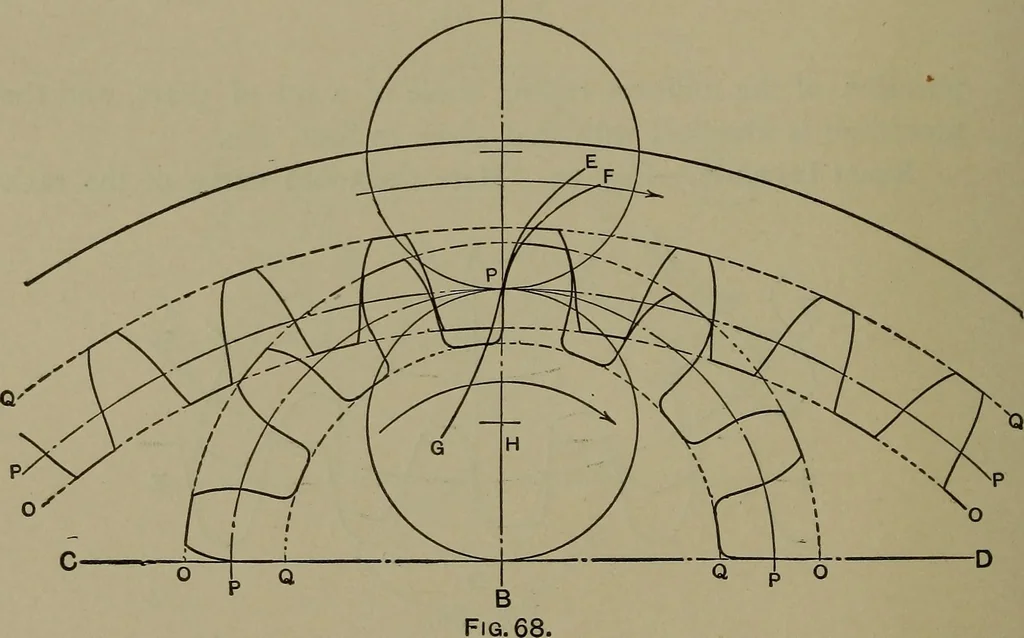

Fig. 67. tooth curve of the rack teeth, and for the tooth curve of the pinionapply the involute table as for spur-gears, Sect. 160. A … 162. Internal Gears. Exact Cycloidal.—Fig. 68. To drawthe teeth, draw the two pitch-circles tangent at the common pitch-point, P; draw the addendum- and root-circles of the usual pro- GEARING. J43 portions, and the describing-circles as shown. Rolling thedescribing-circle on the outside of the…
