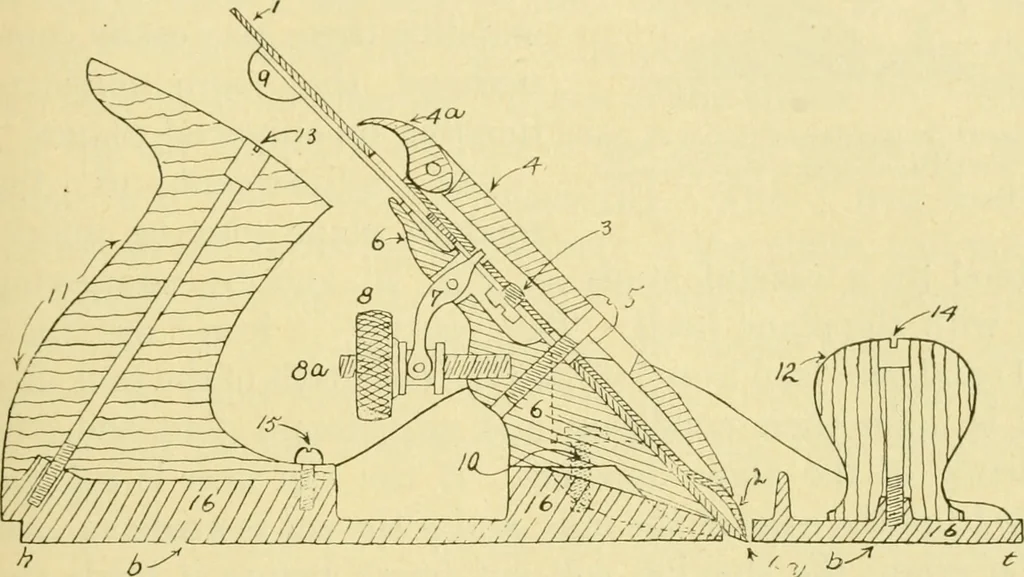

Fig. 45.—Knife Blades. A, used by wood-worker;B, vised in manual-trainingschools. TOOLS 73 skill is necessary to keep it in order, as well as to use itproperly. (B.) The only plane in use until recent years had awooden stock, and the iron was adjusted by blows witha hammer; this form of plane has… … Fig. 4G. — Section of Iron Plane. 1, cutter, iron, or bit; 2, cap iron; 3, plane iron screw; 4, cap lever; 4 a, cam; 5, cap screw;6, frog; 6a, mouth; 7, Y lever; 8, vertical adjusting nut; 8a, vertical adjusting screw; 9,lateral adjustment; 10, frog screws; 11, handle; 12, knob; 13, handle bolt and…
