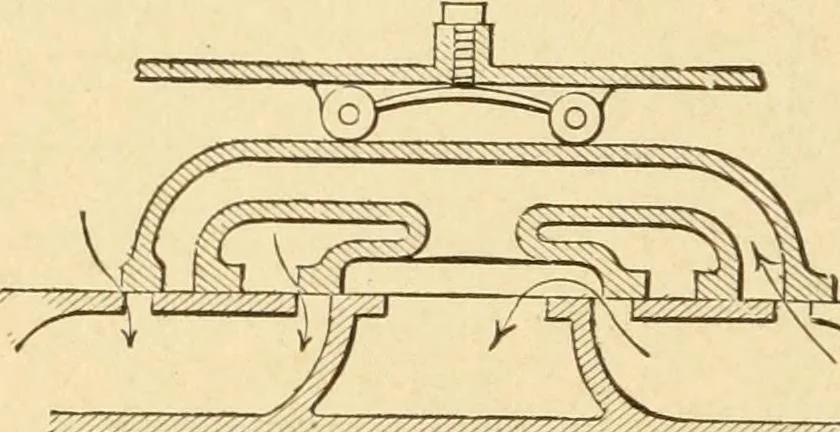

241. MEYER CUT-OFP VALVE—C, D, Slide valve withperforated ports. The supplementary or cut-off valves are adjustedto the required distances, to meet the required cut-off, by a right andleft screw, which has an index H, and wheel G, for turning the screwfor cut-oif adjustment on the outside of the… … 242. SINGLE D, SLIDE VALVE, with double steam and exhaustports. Central steam ports openinto steam chest at the side of the^ valve.
