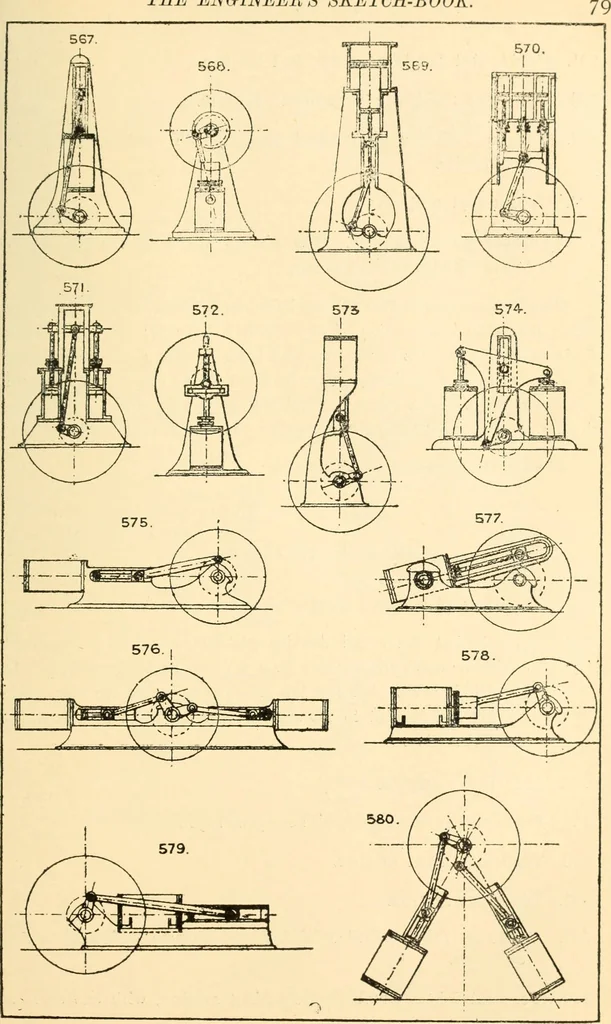

otted crosshead engine. 573. Standard vertical engine; a type largely used and possessing many good points. 574. Double cylinder engine, with T connecting rod. (Bernays patent.) HORIZONTAL ENGINES.675. Box bed engine, high pressure. \ 676. Double box bed engine, coupled end to end. 677. Oscillating… … 8o TBE ENGINEERS SKETCH-BOOK, 681. Horizontal tandem compound engine. 582. Galloways oblique compound engine. 583. Double cylinder compound engine, with receiver, cranks at right angles. 584. Trunk bed engine. 585. Double piston engine. The pistons are sometimes coupled to two crank pins at right…
