The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 21

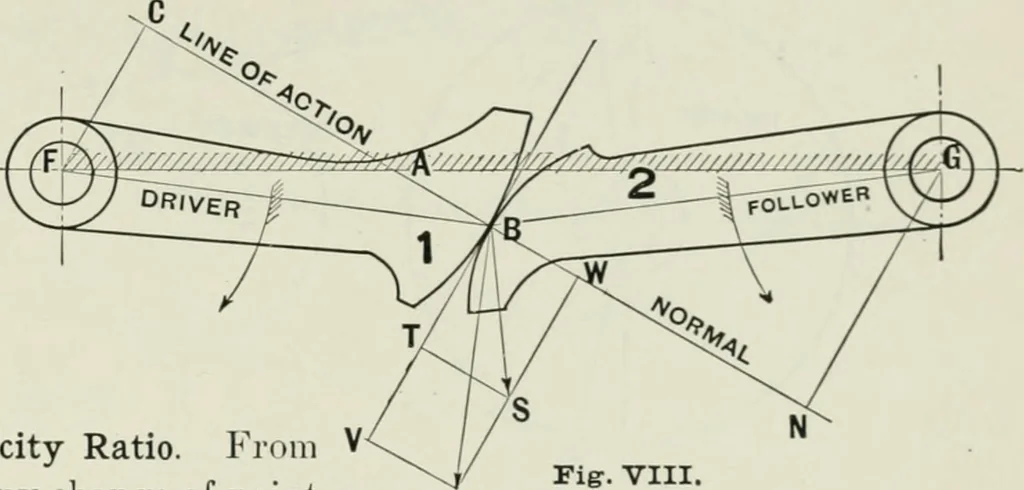

contact is suchthat the arms rotate in the samedirection, but if the rotation beopposite, the conditions may besimilar to Fig. VIII, which is let-tered to correspond with Fig.VII, and the same demonstrationmay be employed. IX. Condition of Constant Velocity Ratio. From V^the above law it will be… … Fig. VIII. X. Flexible Connectors. If pulleys be substituted for the revolving arms of the linkmechanism in Fig. V, and if a flexible connector such as a belt, rope, or chain be used to re-place the link, the velocity ratio may be maintained constant. And if the ratio of the pulley diameters be…
Gearing
