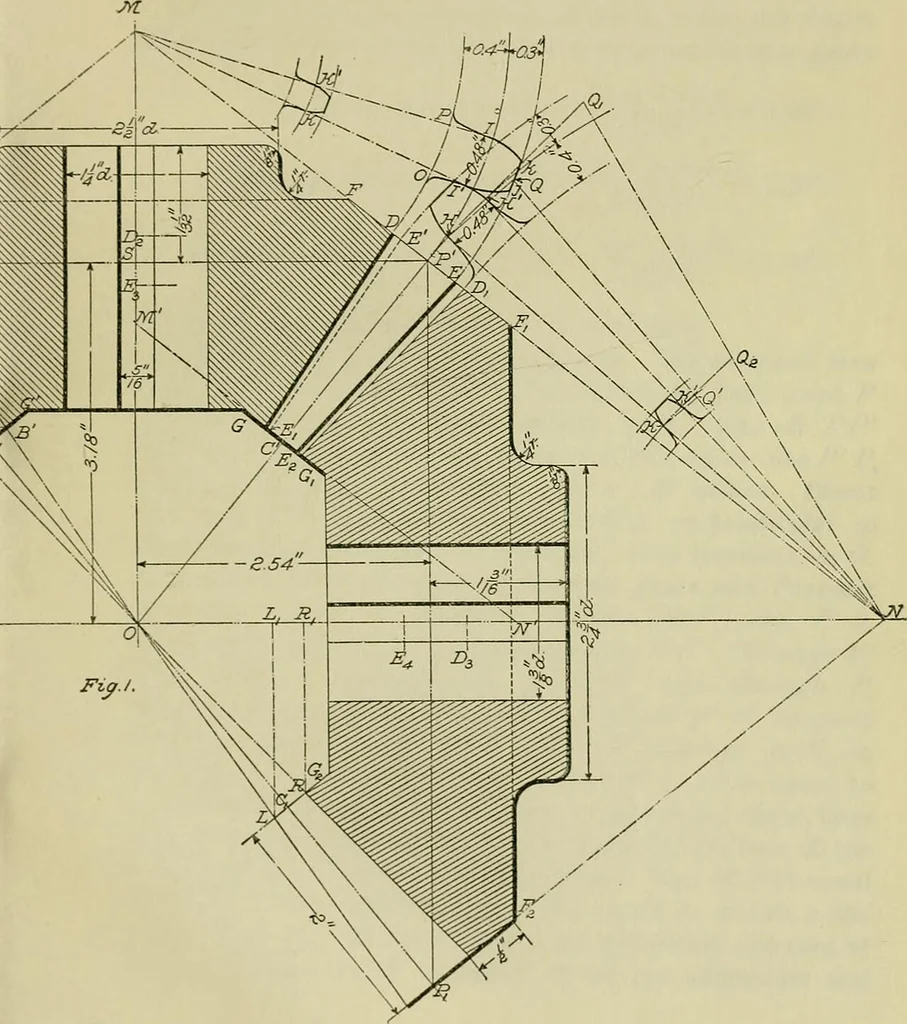

JUNE 25. /693. For notice of cop>Tight, see page BEVEL GEARS. Cexsilro-n Pzi.ll Size. ^•^■^4^ … ediately following the title page. i/ay>v s/if/r/f, class n9 4.529. § U MECHANICAL DRAWING 59 DRAWING PLATP:, TITLE: BEVEIi GEARS 93. To draw in section and projection two cast bevelgeais whose axes intersect at right angles: The number ofteeth in the large gear is 20, in the pinion 10. The…
