The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 84

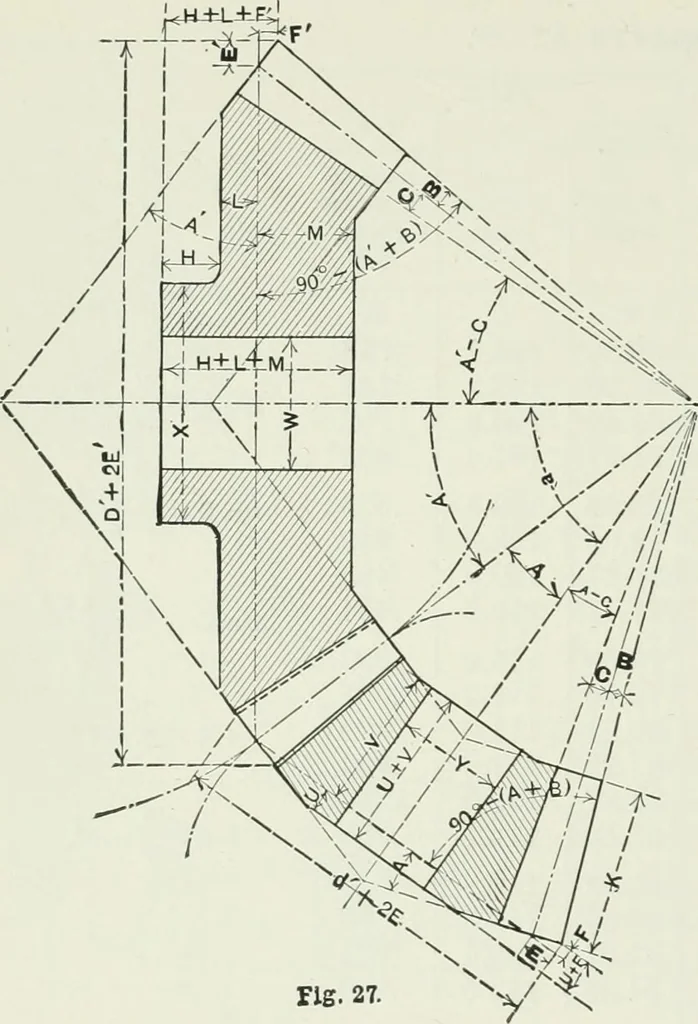

iii.a .357 1: 6 .166 9.46 18.8 1.973 80.54 111.6 .329 2:13 .153 8.75 17.4 1.977 81.25 111.8 .304 1: 7 .143 8.13 16.4 1.980 81.87 112.0 .283 2:15 .133 7.60 15.0 1.982 82.40 112.1 .265 1: 8 .125 7.12 14.2 1.985 82.88 112.2 .248 2:17 .117 6.70 13.3 l.<)86 83.30 112.3 .233 1: 9 .111 6.33 12.6 1.988… … 63. Bevel Gears with Axes at any Angle.If the axes of the gears intersect at angles otherthan 90°, tlie drawing of tlie Wanks and devel-opment of the teeth do not differ from the casesalready described. The figuring required is thatindicated in Fig. 27, those in the heavy facebeing used to…
Gearing
