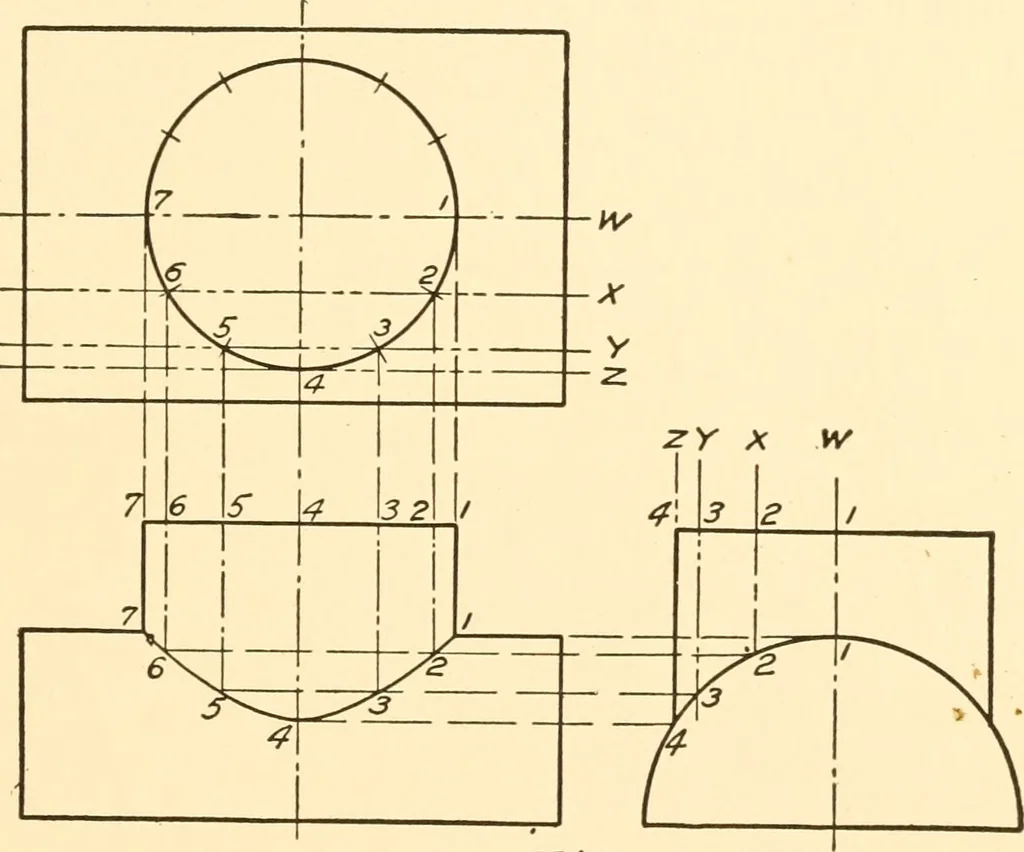

/^/^. ^9/ … Fig. ^92 of intersection in order to be visible must join two visible pointsdetermined as stated. A vertical plane through the edge EFwill intersect the inclined prism in two lines parallel to the inclined 120 ESSENTIALS OF DRAFTING edges as shown. Each of these incHned Unes intersects the edgeEF…
