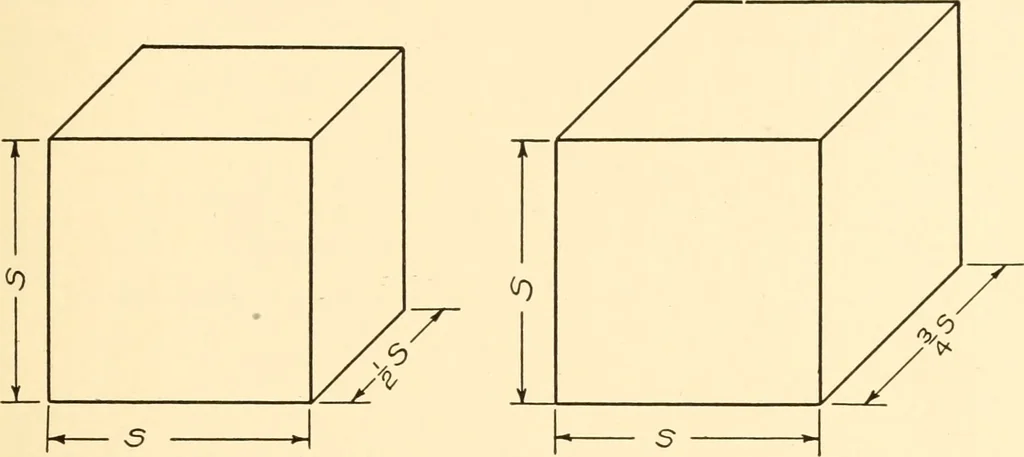

RAWING 135 Oblique Drawing. — Another method of picture drawing oftenuseful is oblique drawing or projection, in which the view isobtained by using projection lines oblique to the plane upon whichthe object is to be represented. In Fig. 318 the orthographicprojection of a cube is shown and, on the… … F/g. 320 with the horizontal. It follows that if one face of an object isparallel to the vertical plane, it will show in its true size and shape. After locating the axes the methods of construction given forisometric drawing apply to the making of oblique drawings.Many examples of oblique drawing…
