Freehand perspective and sketching; principles and methods of expression in the pictorial representation of common objects, interiors, buildings and landscapes (1910)
Norton, Dora Miriam · Brooklyn : D. M. Norton · leaf 70

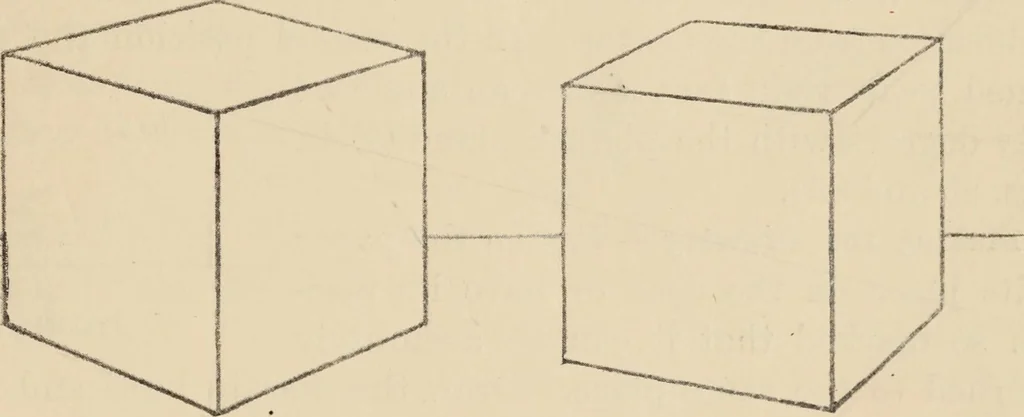

t that height. But as each ones eye levelis edge to him, it would (if visible) always appear to him as aline, hence it is always drawn as a line. 52 Chapter XVII THE CUBE IN TWO DIFFERENT POSITIONS THIS exercise should first be drawn from the objects, andthen from memory, according to the general… … Fig. 84- done by making their nearest vertical edges of the same lengthand at the same height on the paper, and using the same eyelevel for both. Position of Models. —For the first drawling, place the card-board cube so that its front faces are equally turned away, ormake angles of forty-five…
