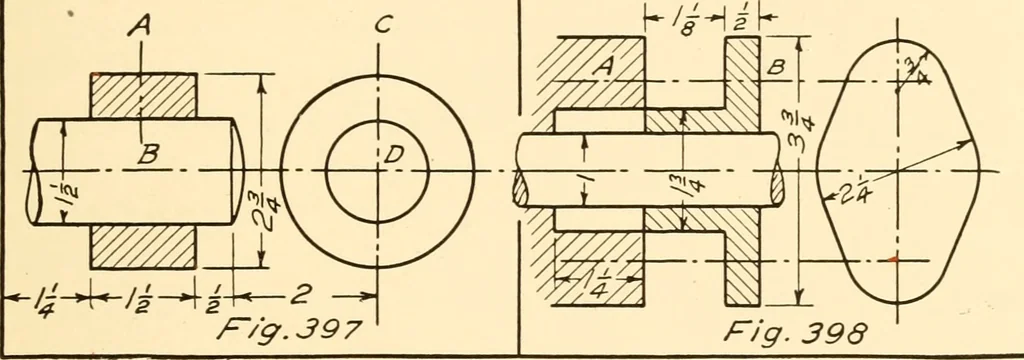

ss flats.On axis C-D draw a iVs bolt, hex head across flats and hex nutacross corners. Indicate required dimensions. 134. Space 5V2 X 1. On axis A-B, Fig. 396, draw a Vsbolt, square head across corners and square nut across flats. QUESTIONS, PROBLEMS, AND STUDIES 159 On axis C-D draw a Vs cap… … shaft, Fig. 397. On axis A-B draw a Vs set screw, head acrossflats. On axis C-D draw same set screw, head across corners. 136. Space 5V2 X 1> Draw the gland and stuffing box ofFig. 398. On axis A-B draw a V2 stud and nut. Show nutacross flats. Make provisionfor the gland to enter one halfthe…
