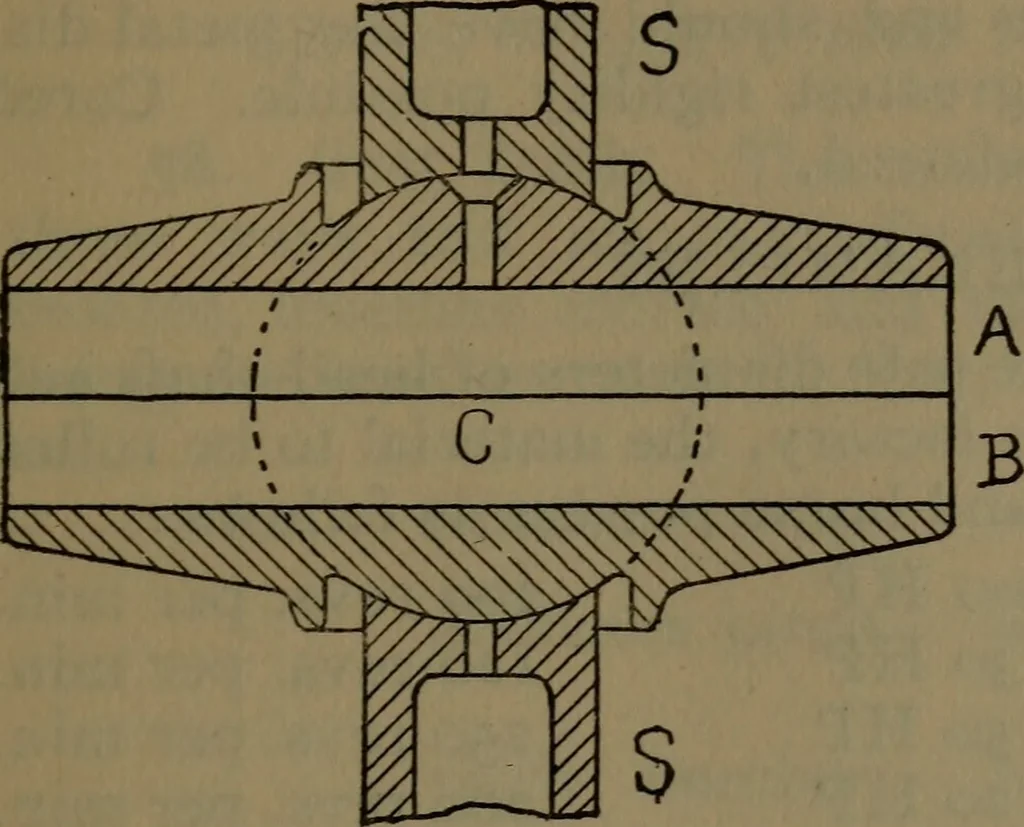

socket joint; allother contrivances such as set screws are but poorsubstitutes. Fig. 36 shows theusual arrangementof the ball andsocket. A and B are thetwo parts of thebox. The centeris cast in the shapeof a partial spherewith C as a centeras shown by thedotted lines. Thetwo sockets S Scan be… … Fig. 36. Counter shafts are short and light and are notsubject to much bending. Consequently there is notthe same need of ad-justment as in lineshafting. In Fig, 37 is il-lustrated a simplebearing for counters.The solid cast ironbox B with a sphericalcenter is fitted directlyin a socket in…
