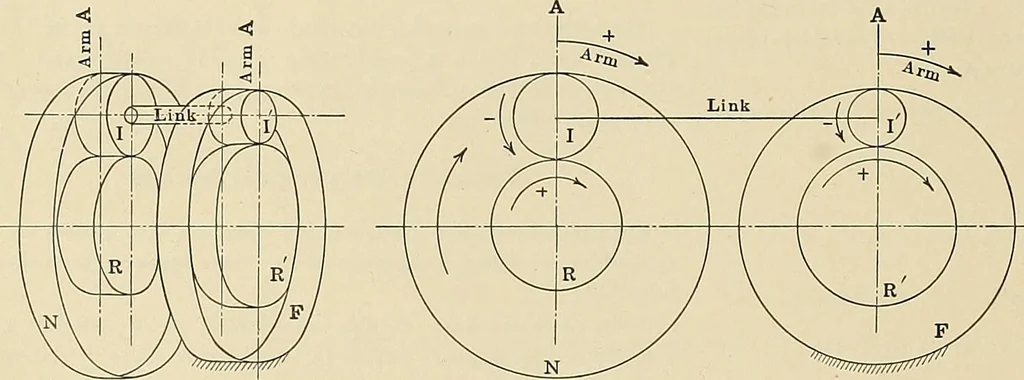

Fig. 13.—Second stage in deriving equa-tion (i); arm assumed to be fixed, F turnedbackward. Fig. 14.—Compound epicyclic trainwith one internal gear. Eq. (./) Ns V.=Rs V.X (i + j^) … Fig. 15.—Compound epicyclic train with two internal gears. See Eq. (i), same as Fig. 12. NOTATION R = Denotes Driving Gear, or in some cases, Arm.r = Number of Teeth in Driving Gear.N= Denotes Driven Gear or Arm.n = Number of Teeth in Driven Gear.I, S and M denote Intermediate GearsF= Denotes Fixed…
