Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 178

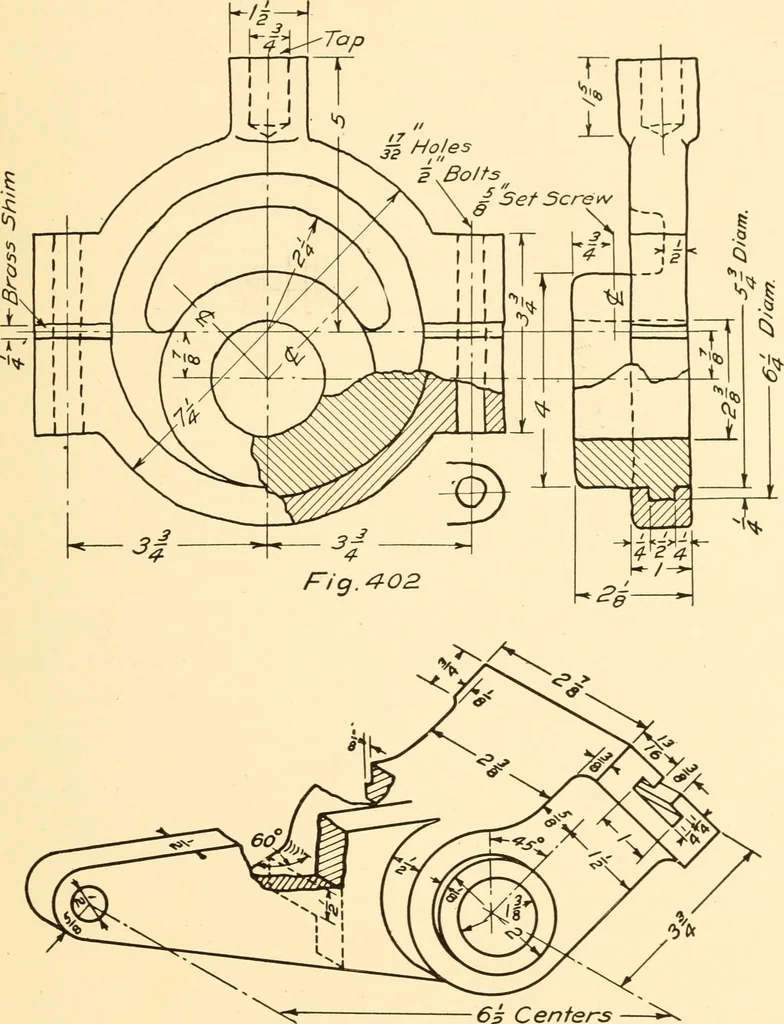

rig. 401 QUESTIONS, PROBLEMS, AND STUDIES 161 … 6^ Centers Fig. ^^03 147. Make detail working drawings for the parts of the eccen-tric shown in Fig. 402. Supply any missing dimensions. Draw-ing should include a properly dimensioned bolt and set screw.Completely dimension the drawing. 148. Make detail working drawings for the parts of the…
Mechanical drawing
