Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 179

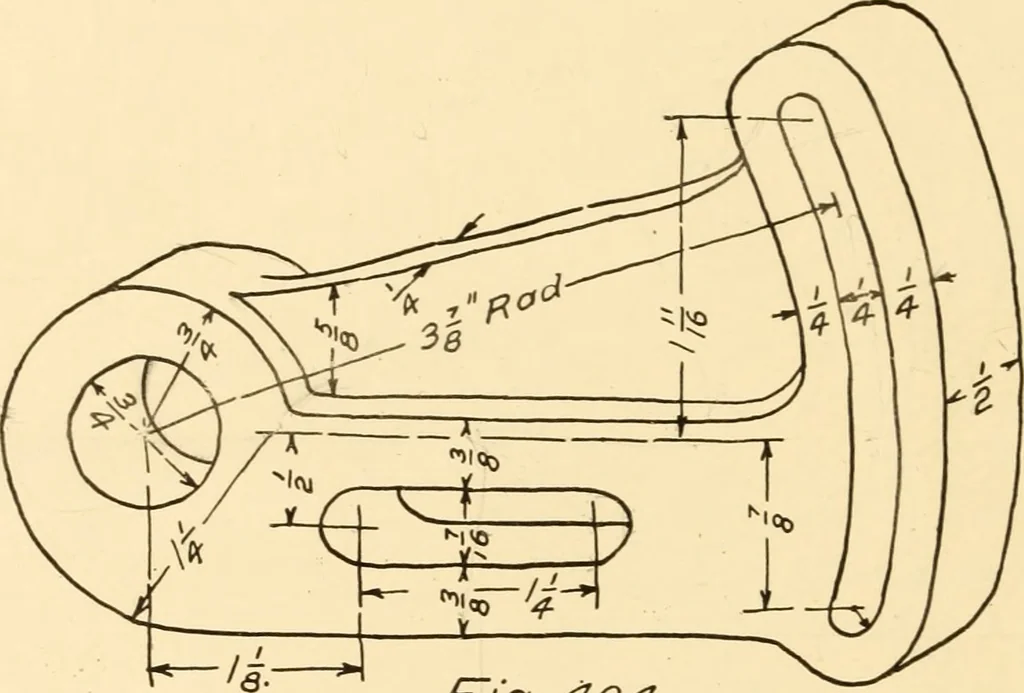

roperly dimensioned bolt and set screw.Completely dimension the drawing. 148. Make detail working drawings for the parts of the stepbearing shown in Fig. 175. Scale 6 = 1 foot. Use two sheets,11 X 14 space. Completely dimension. 162 ESSENTIALS OF DRAFTING 149. Draw two views of Fig. 403. Each view… … fig. 4o^ 151. Space 5V2 X 7^ Make a detail working drawing ofthe construction shown in Fig. 405, using one full view and suchparts of other views as are necessary to define its true shape. /^
Mechanical drawing
