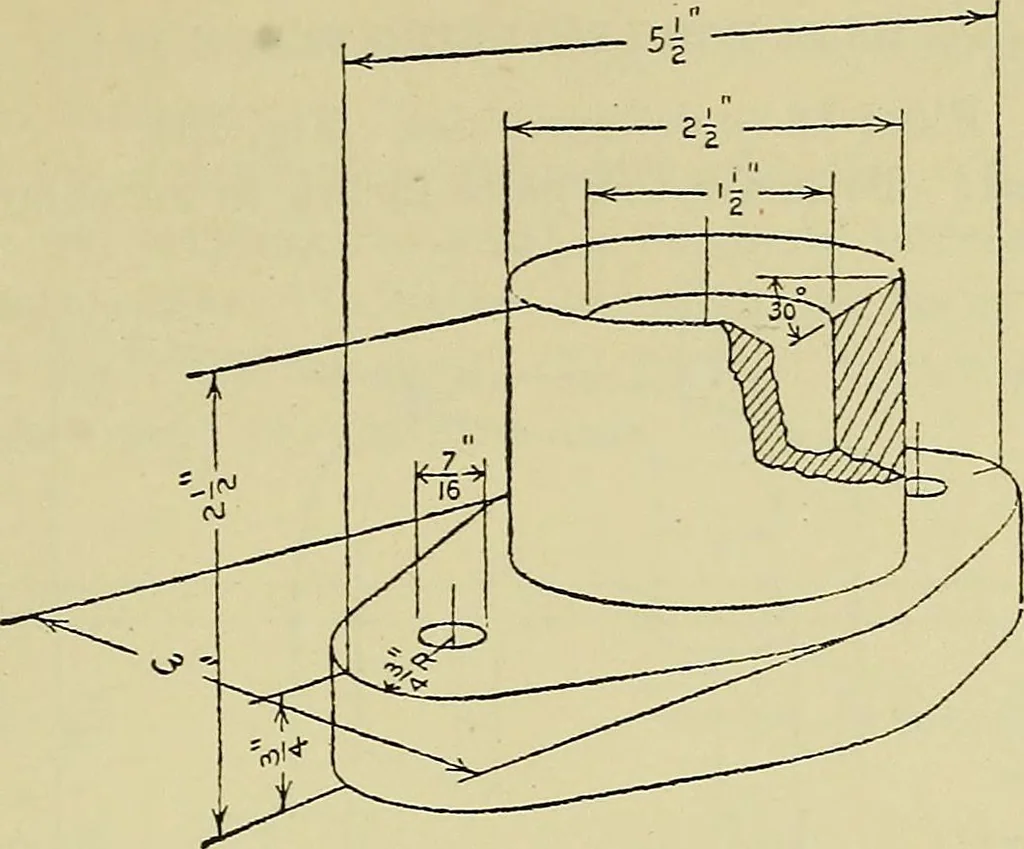

bject, with dimen-sions, as assigned by the instructor. The student should decidewhat views are necessary to show the form of the object. Instructions: In drawing the circles and ares, sketch in thecenter lines and lay off the radii on each, as in Plate 10. PREPARATORY INSTRUCTIONS FOR LETTERING… … Fig. 158. Stuffing Box Gland
