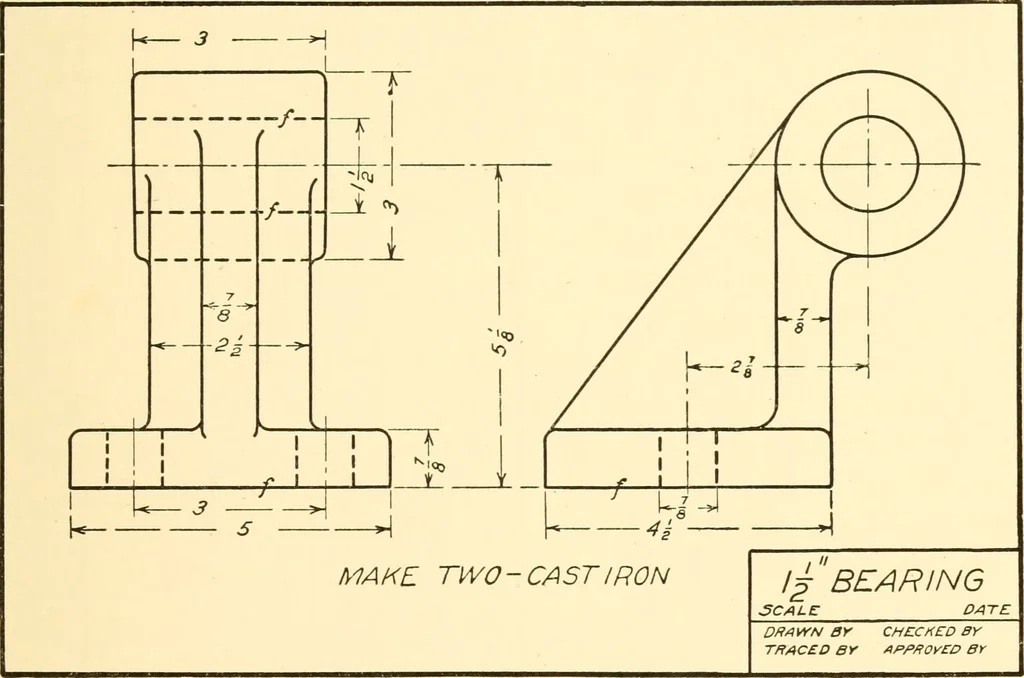

rowding of the dimensions. In generalit is better not to use more than one scale on the same sheet.To this end large and small pieces would not be put on the samesheet. There are many concerns where each part is drawn ona sheet by itself. The character of the work will determine thepractice in this… … Fig. 152 Special Detail Drawings. — Special detail drawings are some-times made for the different classes of workmen. These mightbe classed as follows: Pattern Drawings, Forging Drawings, Machinists Drawings, Stock Drawings. There are many advantages to this system where a large num-ber of parts…
