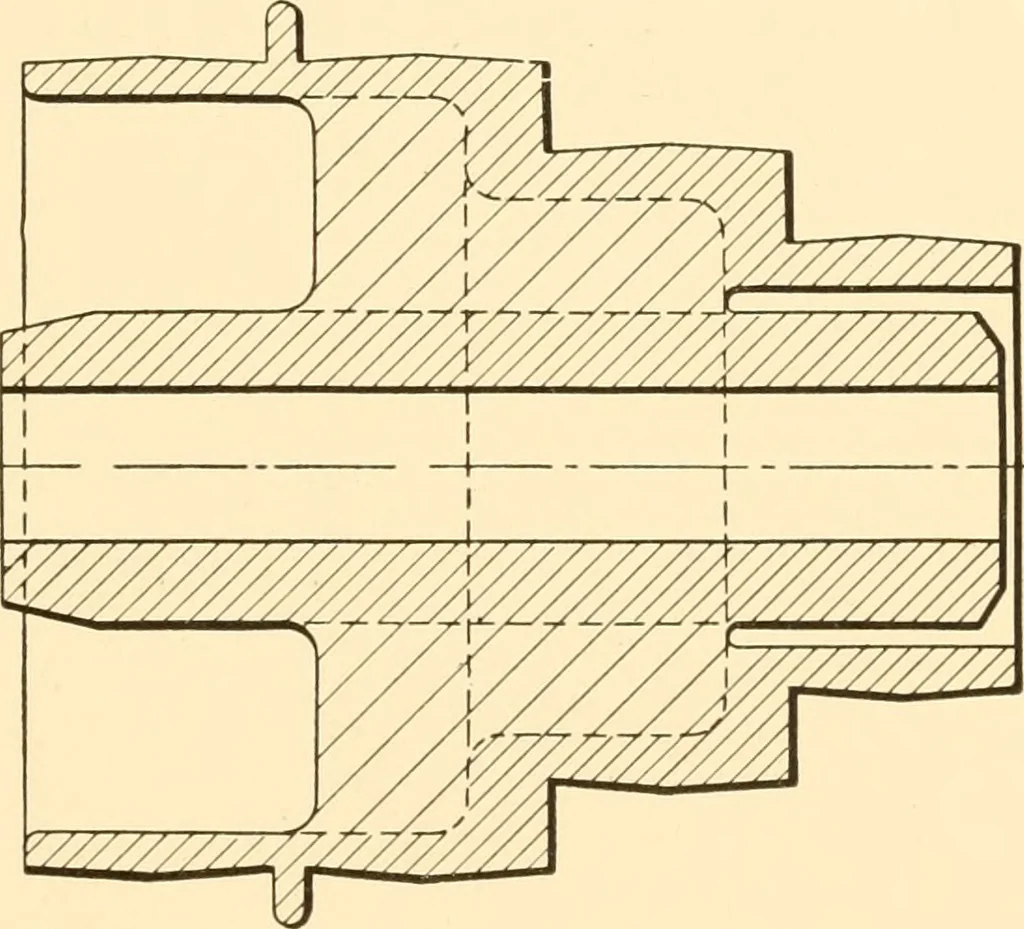

V77777777, … Vy///////A Fig. /a 2 dotted lines may be omitted from both halves, as was done inFig. 175. Sections of Ribs and Symmetrical Parts. — Ribs, arms, andgear teeth are not ordinarily sectioned even though they appear 76 ESSENTIALS OF DRAFTING on the plane of the section. Figs. 177 and 178 illustrate…
