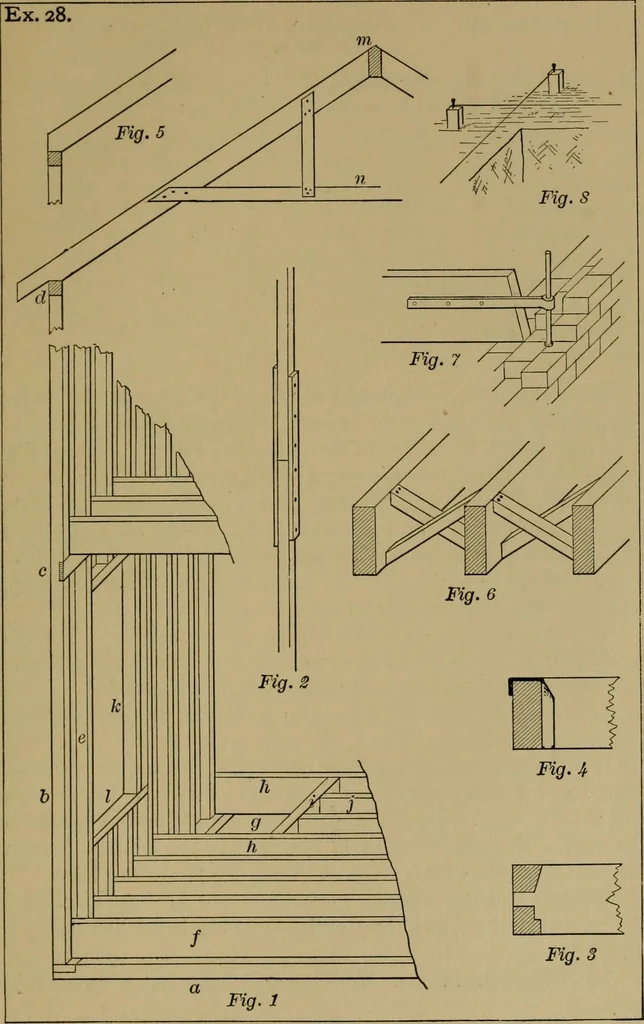

these lines the exact length and in-clination of the saw-cut are obtained. Fig. 7 shows the manner offastening beams or joists to brick walls, by using an anchor. Fig.8 shows the manner of indicating the place for the foundation;the lines are fastened to nails driven into stakes. To square thelines… … li 5 2 5i H 0? 2 51 u 2 6i 34 u i 11 56 a i If 27 i 1 56 r 1 2 5f (( li 4^ 57 i( li 4J 32 126 ELEMENTS OF HOUSE-BUILDING. Exercise 29.—Construction of Window and DoorFrames. Material.—The following pieces enter into a window-frame the sizeof that mentioned in the previous Exercise: Two…
