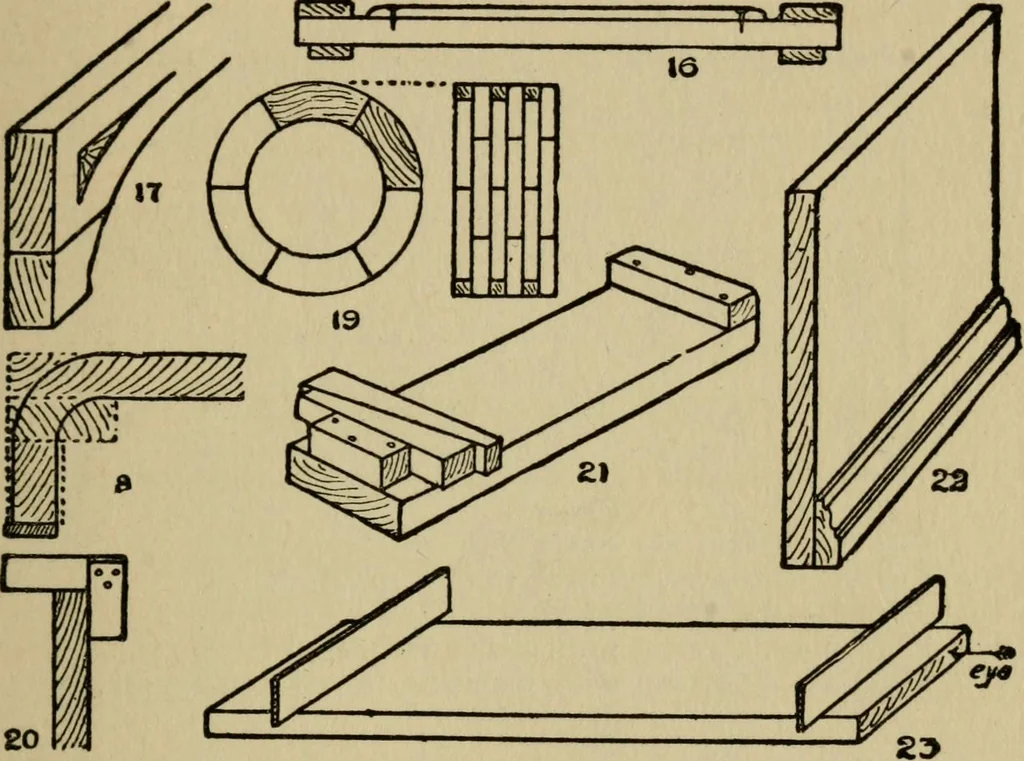

s positionwill be shown in the chapter on Dovetailing. Fig. II shows a butt joint planed at an angle of 45°(commonly called a mitre), used for box feet, etc. Fig. 12 shows jointing up of an ogee-shaped panel. The 6 The Ghted Joint dotted lines indicate the thickness of the timber previousto its… … Fig. 16.—Lining-up a glass frame.Fig. 17.—Jointing a shaped spandrel.Fig. 18.—Building up case of piano fall.Fig. 19.—Laminated work.Fig. 20.—Testing with square.Fig. 21.—Cramping arrangement.Fig. 22.—Glueing ploughslip to drawer.Fig. 23.—Test for winding. Fig. 14 shows quarter-circle jointing, as…
