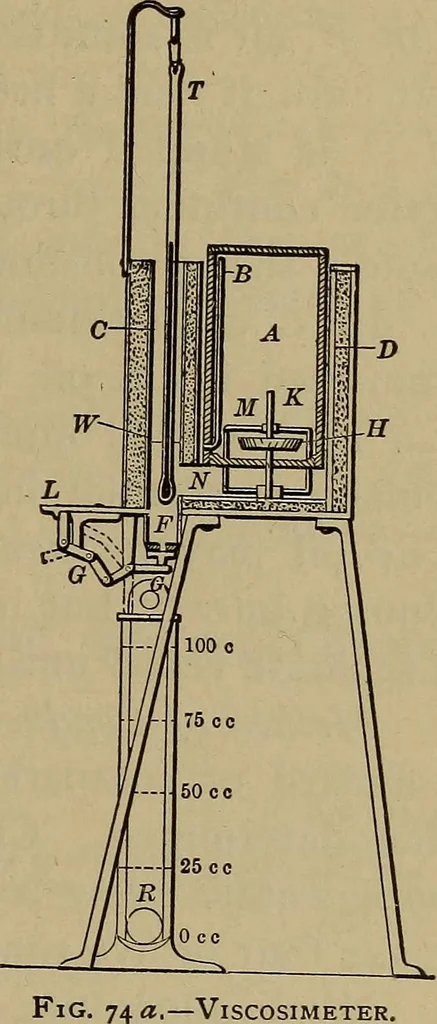

The mechanism Z, G, (9 is a device for opening andclosing the orifice F readily, and is held in a closed positionby spring catch L. The instrument is supported by three legs about eightinches in length. Operation.—Withdraw cup A, fill it in an inverted posi-tion with the oil, hold valve i7 on its… … ViSCOSIMETER. iSla EXPERIMENTAL ENGINEERING, [§ 14I, lower opening of tube B, A beaker graduated in c.c.s, ofcapacity of about no c.c, is placed under i^; Z is releasedand G allowed to drop, permitting oil to flow through i^ freelyinto the beaker. When oil in C falls below the bottom oftube By air…
