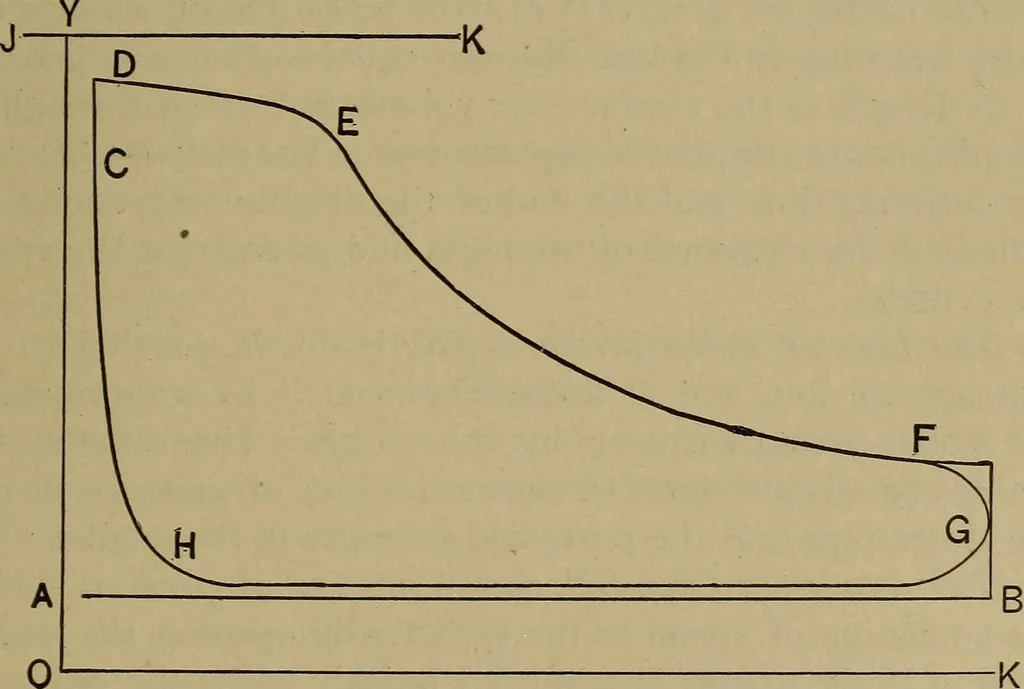

indicator, then wipe off with oily waste.Fasten the indicator in its box, in which it will go, as a rule,only one way, but it requires no pounding to get it properly inplace; carefully close the box to protect it from dust. CHAPTER XVII. THE INDICATOR-DIAGRAM. 400. Definitions.—The… … ^iG. 201.—Diagram from an Improved Greene Engine. Cylinder, i6 Inches in Diameter,36 Inches Stroke. Boiler-pressure, ioo lbs. 8o Revolutions per minute. Scale, 50. of the piston. During a complete revolution of an engineozzwx four phases of valve-motion which are shown on the indi-cator-diagram,…
