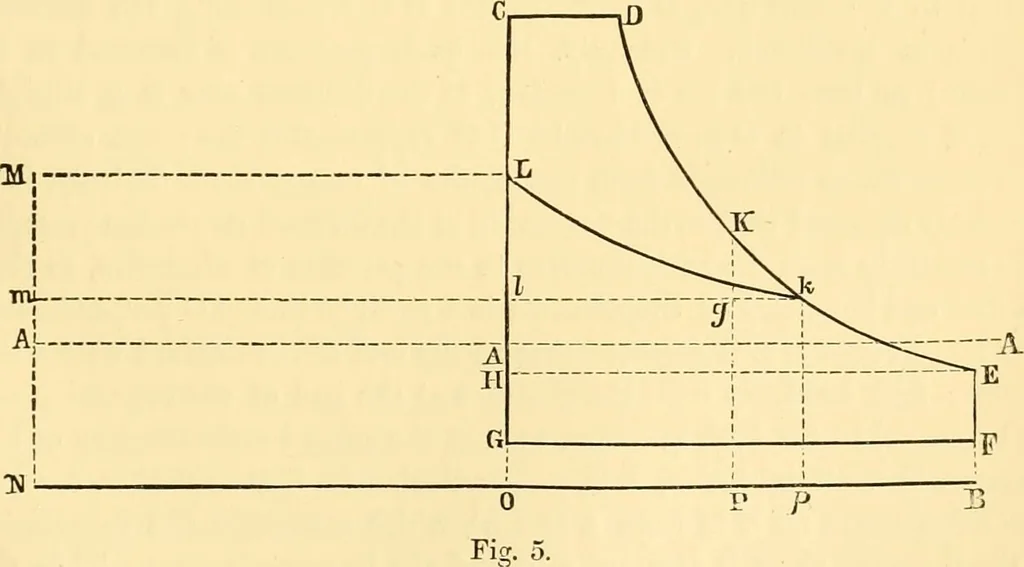

THE WORKING OF STEAM IN COMPOUND ENGINES. 457 the points, such as q, thus found, will be the required boundary of theenlarged low-pressure diagram, kqejksJc, which, being joined on to the C D T R Sfl V A TH Ssft A A* R I G » Lb Fig. 4. high-pressure diagram C D K H, makes the combined diagram.… … srk) lay off sk = csr. A curve Ikefg, drawn through the points,such as h, thus found, will be the required boundary of the enlarged low-pressure diagram, which, being joined on to the high-pressure diagramC D K L, makes the combined diagram. In a theoretically perfect 458 THE WORKING OF STEAM IX…
