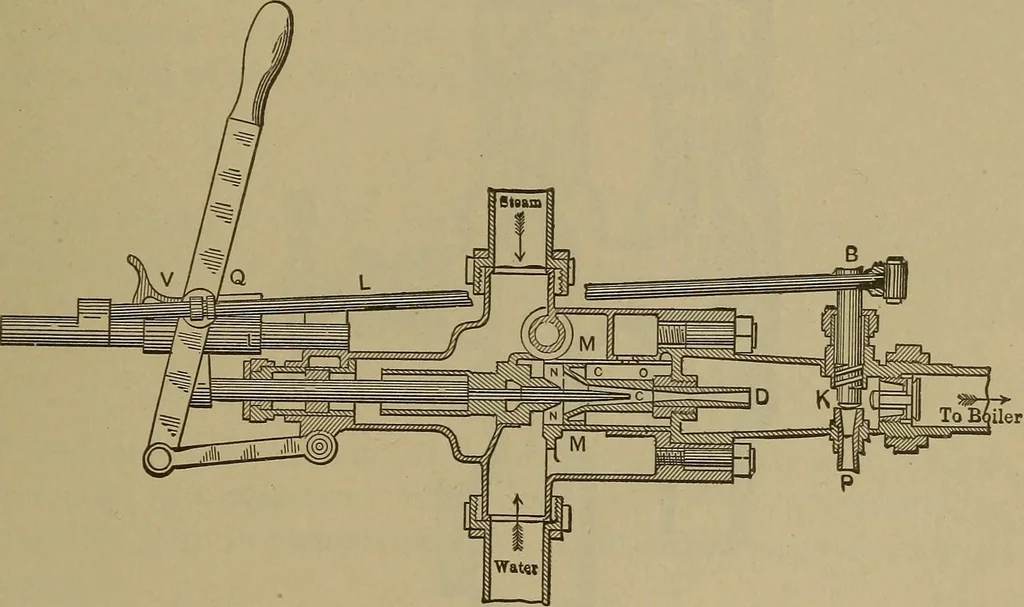

e nozzle at this point with the surroundingarea. This area is separated from the outside air by a check-valve, E, opening outward in the automatic injectors, and by aglobe valve termed the overflow-valve in the non-automaticinjector. The injector-nozzles are tubes with ends rounded toconform to the… … Fig. 301.—The Sellers Injector. themselves automatically by varying the openings through thetubes to suit changes in steam-pressure. Fig. 301 is a section of the Sellers injector of 1876; in this,injector the steam-nozzle C can be inserted a greater or lessdistance, as required, into the…
