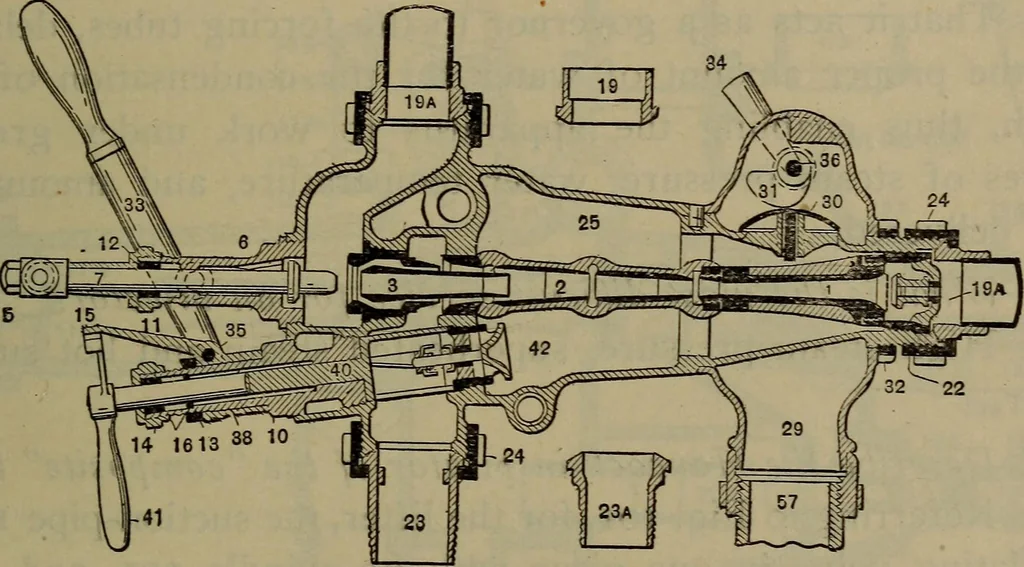

. 163 Q. Describe the Sellers locomotive injector, 1903 model. A. As seen in Fig. 100, there is a main casing 25, withsteam-supply pipe 19a, water-supply pipe 23, overflow-pipe57, and feed-pipe. The steam nozzle 3, controlled by thespindle 7, delivers steam to the combining-tube 2 and theheated… … Fig. 100. The Sellers Injector. Q. How is this injector started when lifting the water? A. By pulling out the lever 33. Q. How is it shut off? A. By pushing in the same lever. 0. Hozu is the quantity of feed regulated? A. By the water-valve 17. Q. How is it used as a heater? A. By closing the…
