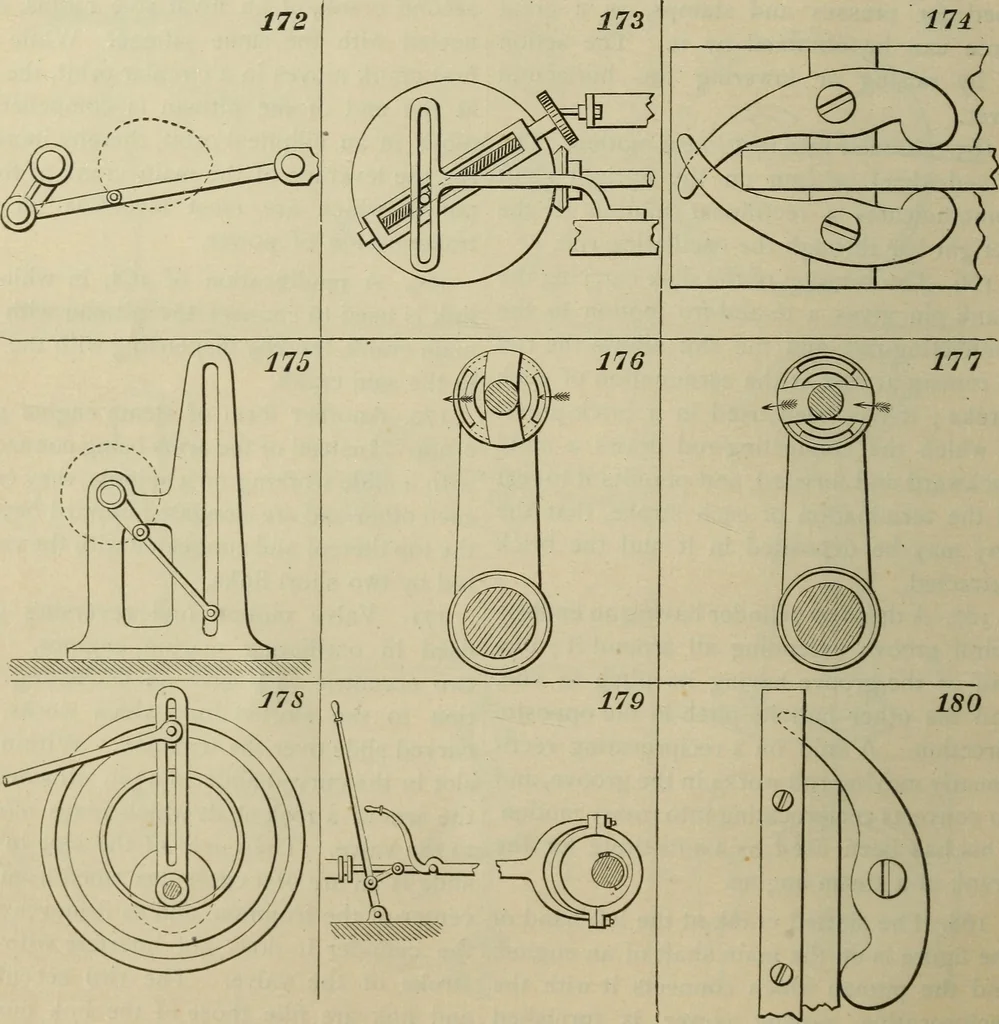

ric rods give an oscillating mo-tion to the slotted link which works thecurved slide over the trunnion. Within theslot in the curved sHde is a pin attached tothe arm of a rock-shaft which gives motionto the valve. The curve of the slot in thesHde is an arc of a circle described from thecenter of… … Mechanical Movements. 47 172. A mode of obtaining an egg-shapedelliptical movement. 173. A movement used in silk machineryfor the same pmpose a^ that described in142. On the back of a disk or bevel-gearis secured a screw with a tappet-wheelat one extremity. On each revolution ofthe disk the…
