Buck, H. D. (Horace Davis) · New York, Bragdon, Lord & Nagle Company · leaf 107

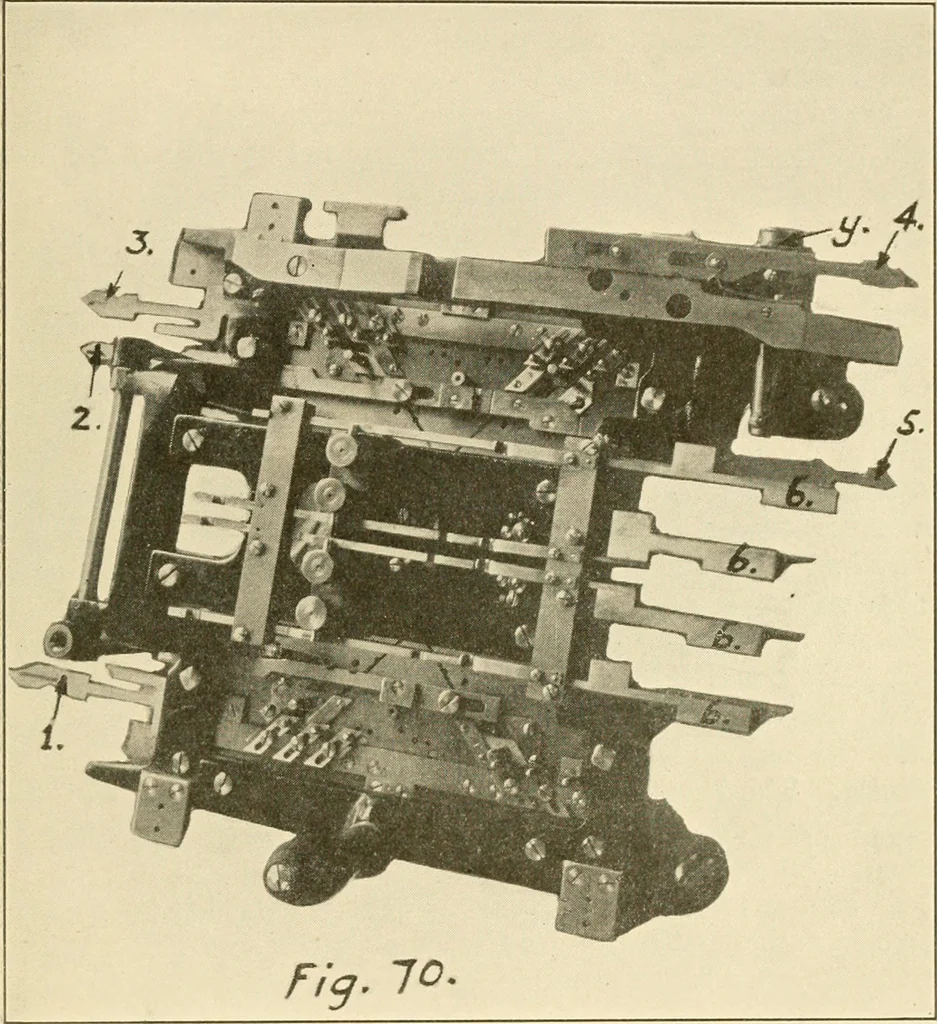

PURL STITCH DESIGNING—HAND—AUTOMATIC 105 moved to any one of three positions. These are the positionshown, or horizontal with the lower edge of, and on a linewith the lower edge of cams 2v and r, or it may be swung downto a point where the end will be at the lower edge of the camplate at v. The… … Top Side of Carriage of Automatic Jacquard Purl Stitcli JMachine. fixed in mind, as they have an important part to play in thejacquard work. We will now give our attention to Fig. 68, whichrepresents a cross section of the needle plates, showinga pair of jacks and a needle in their respective slots…
Machine knitting · Textile fabrics
