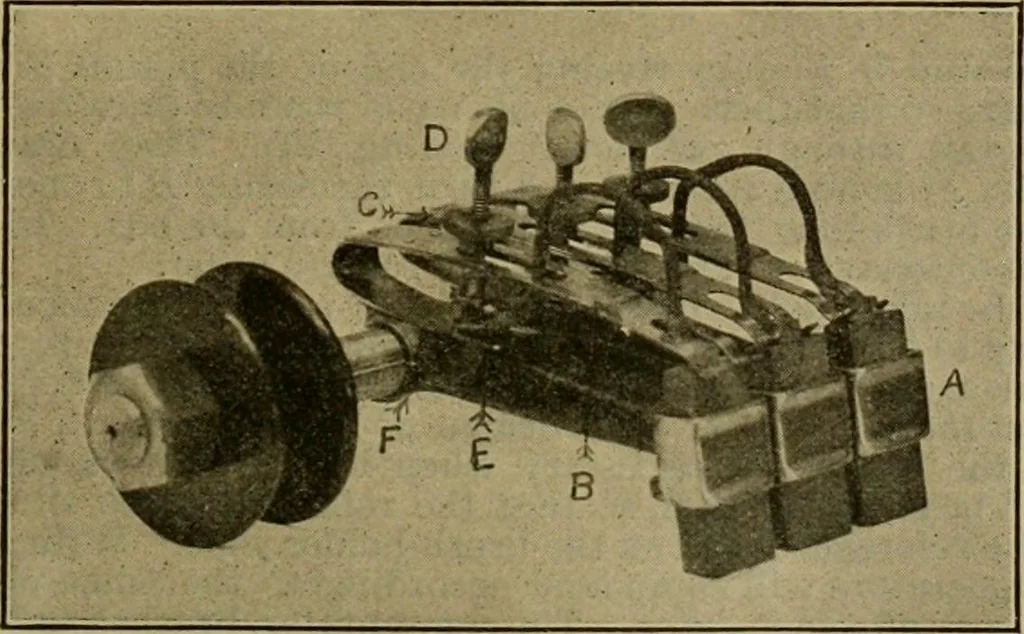

mall arrows correspond toarrows on spool flanges, the spools being so placed that the arrows point in oppo-site directions on each sxicceeding spool. Arrows on bearings must point indirection of rotation. (b) To adjust the compounding.—Every compound generator is providedwith a shunt consisting of… … 70. Freeing the Pigtail from the Brush Holder. 60 HANDBOOK FOR ELECTRICIANS. 10 per cent may be obtained by changing the length of this shunt. The arma-ture and field coils are, during winding, subjected to an insulation test with avoltage many times higher than the normal and their resistance is…
