Free-hand drawing : a manual for teachers and students (1898)
Cross, Anson K. (Anson Kent), 1862-1944 · Boston : Ginn & Company · leaf 117

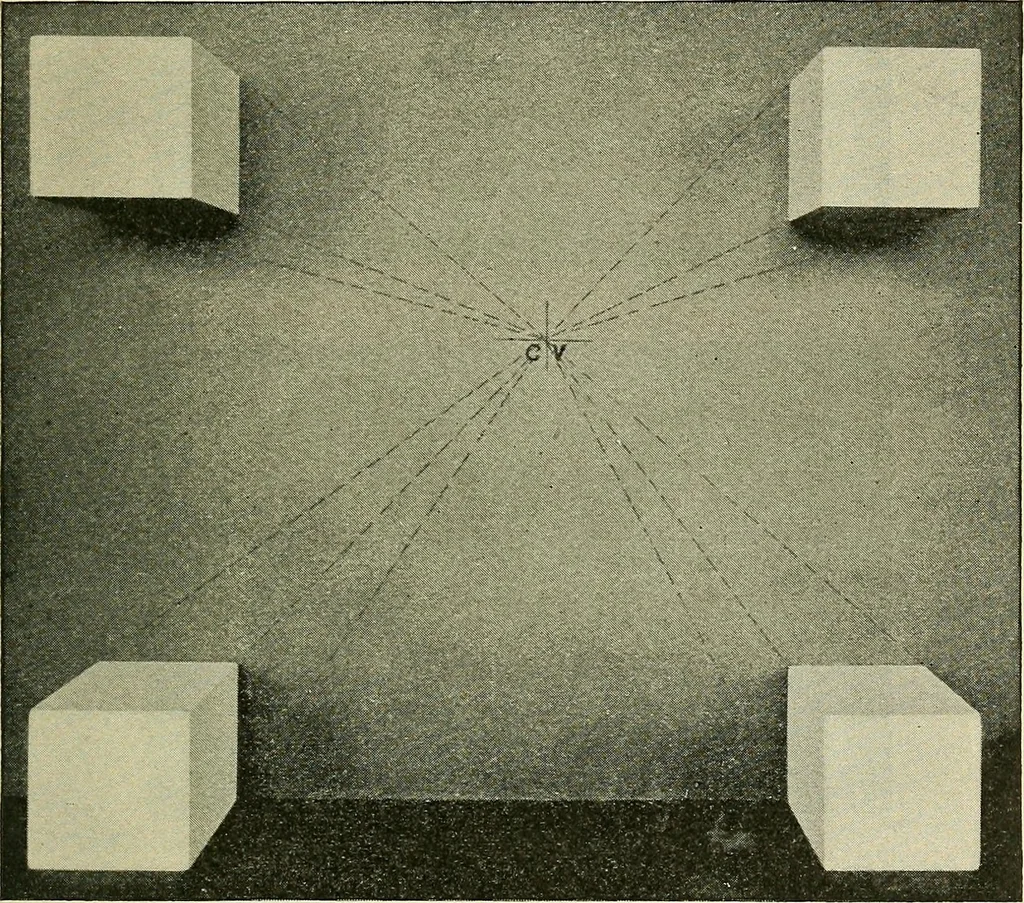

Fig. 35 is satisfactory if the right half is coveredwith paper, and the right half of Fig 36 is satisfactory if the left,half is covered; but neither drawing gives a satisfactory impression SCIENTIFIC PERSPECTIVE AND MODEL DRAWING. 99 of the whole bureau. To do this the perspective, Fig. 37, must… … i IG. 34. Scientific Perspective (Parallel). be parallel to parallel straight lines which extend on both sides ofthe spectator if they are to be satisfactorily represented. The station-point for Fig. 35 is about 3^2 from the paper andopposite a point near the top of the cut and over the left…
