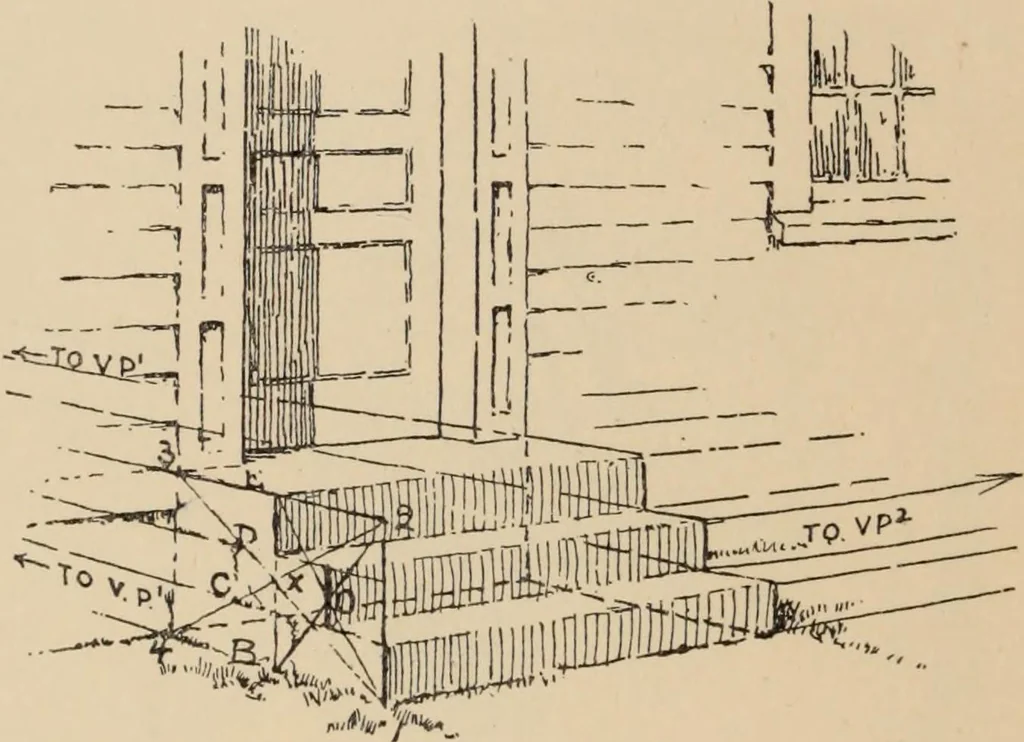

efinite length to VPlthrough the four points ofdivision. On the lower line,B, mark off the proper dis-tance (as four feet), whichmay be estimated by comparison with the windows on the endof the house (their width being parallel with these lines, andusually about three feet). Divide this distance… … Fig. 125 THE STUDY AND DRAWING OF A HOUSE A B \j, \ ^y c ^-^ ~^/ N° ./^^ /^ ^ E P 7 8 c \ 6 R \ Fig. 126 halves required. (See A, Fig. 126.) The further half is for thewide top step. The near half of the rectangle can be dividedagain in the same way for the two lower steps. Where thevertical line…
