The gardener's magazine and register of rural & domestic improvement (1826)
Loudon, J. C. (John Claudius), 1783-1843, A. & R. Spottiswoode, printer, United States. Patent Office. Scientific Library, former owner DSI · London : Longman, Rees, Orme, Brown and Green · leaf 39

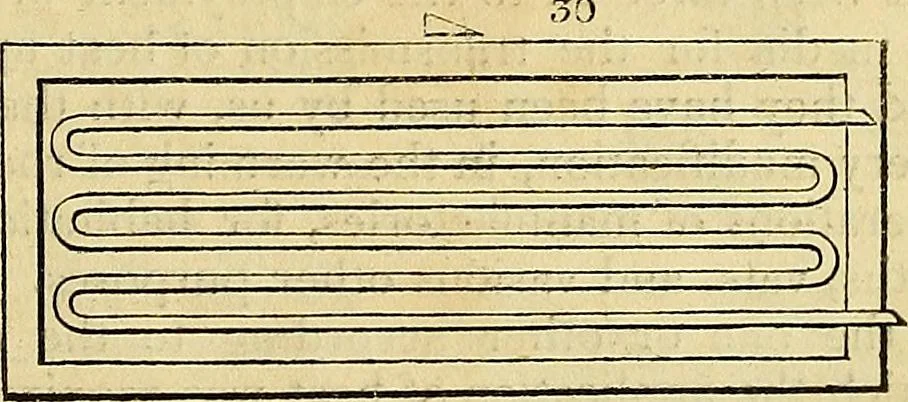

g by thepipe g to the lower part of the boiler a, and promoting the circulation of water byits pressure on the more rarefied parts, going off by the pipesyy. h h, Section of two hot-beds warmed from one fire, in which is seen the ends ofthe worms d d. Fig. 5. {Jg. 30.)Plan of circulationof water in… … 30 Chabanness Pamphlets on heating by hot Water. Explanation ofthePlate.(/o^.31.) a. Kitchen fire place, witha boiler behind the grate. b. Pipe by which the hotwater ascends into theparlour floor {d), and con-tinues fVom thence to theupper cistern (c). e, Kxtrcmity of the return-ing pipe, by which…
