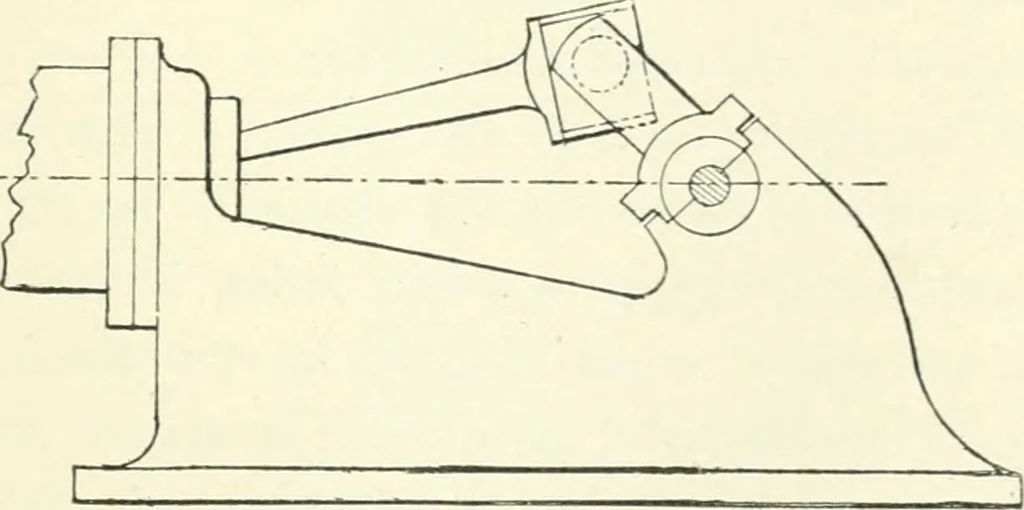

FiG. 26.—Engine with straight bearings. facturers take the precaution of forming the connect-ing-rod bearings of four parts, adjustable to take up thewear, so that the eflfort is exerted against the parts dis-posed at right angles to each other. A form that seemsrational is that shown in Fig. 27,… … Fig. 27.—Engine with correctly designed bearings. of the thrust is taken up by the lower bearing, rigidlysupported by the braced frame, in the direction oppo-site to that of the explosive eftort. 46 GAS-ENGINES AND PRODUCERS The sum of the projecting surfaces of the two bear-ings should be so…
