The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 251

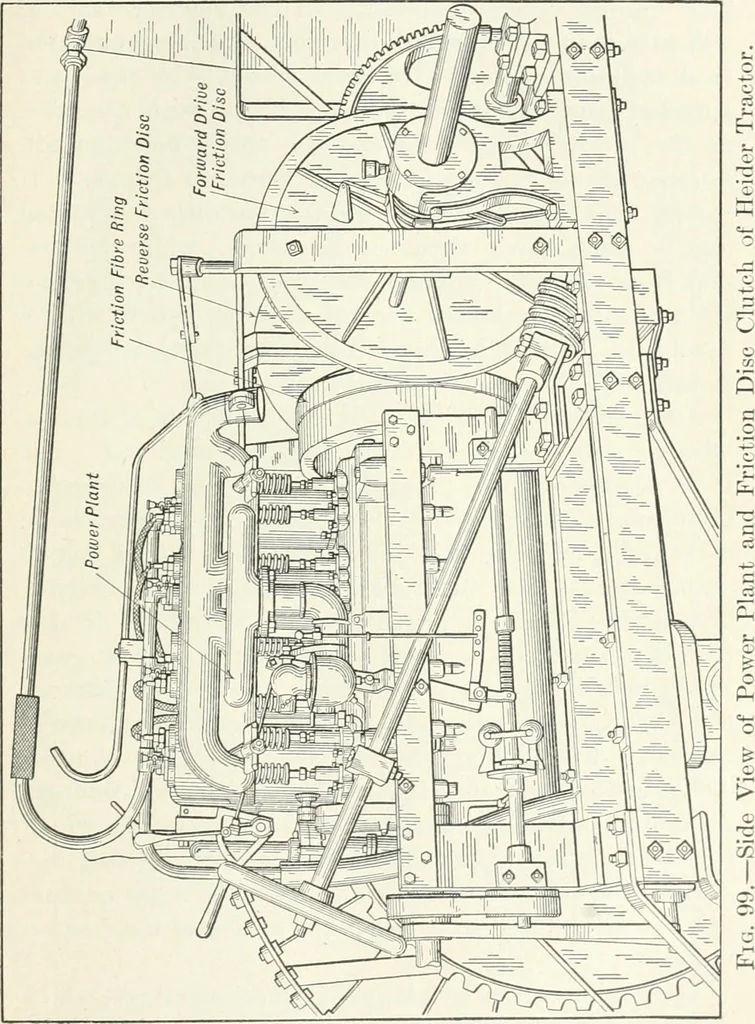

s a driving member, whiletwo disks are attached to the cross shaft which is placedat right angles to the crank shaft of the motor. Thesedisks are adapted to be brought into contact with thefiber friction ring with a considerable degree of pressure. The sketch at Fig. 100 shows the principle of… … 256 The Modern Gas Tractor attached will turn in the same direction, and as thiscarries a driving pinion which is in mesh with a drivinggear on the differential casing of the counter shaft itwill turn it in the opposite direction. As the connectionfrom the counter shaft to the rear wheels is by…
Farm engines · Internal combustion engines
