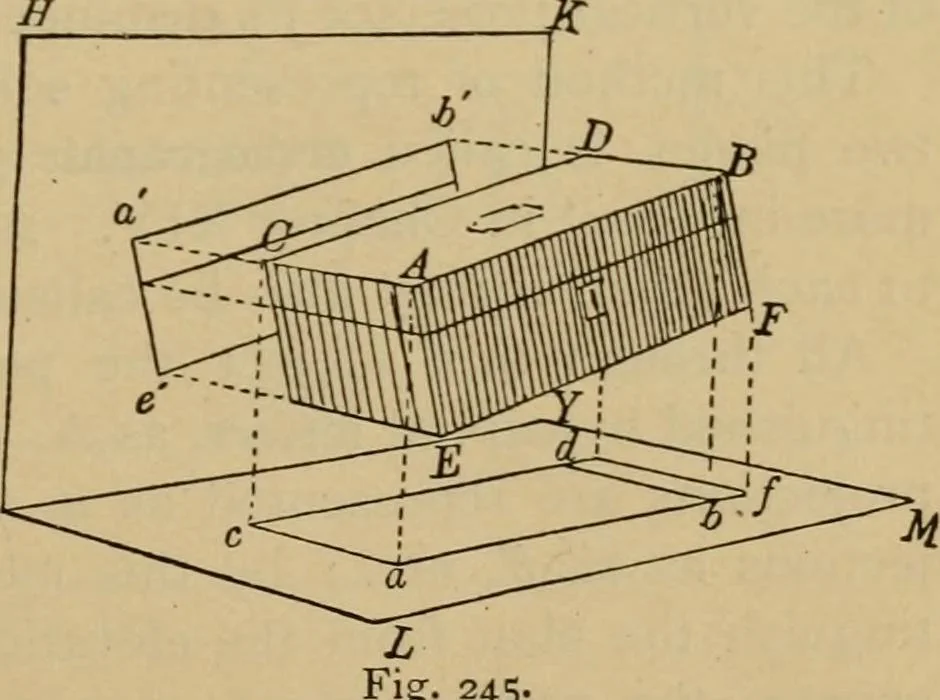

theobject. The lower one is called a PLAN, and represents thespace covered by the object on the horizontal plane, or a viewof the dressing-case seen from above. The upper view showsthe space covered on the vertical plane, and is called anELEVATION : it represents the front view of the object. In… … It is not necessary thatthe object should beparallel to them, as inFig. 243 : we can arrangeit in any position, makingany possible angle with Xeither plane, but the hneconnecting the point onthe object with its respec-tive plane must always be perpendicular to that plane. Weshall understand this…
