Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)

Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 223

An illustration from Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics, 1895, leaf 223

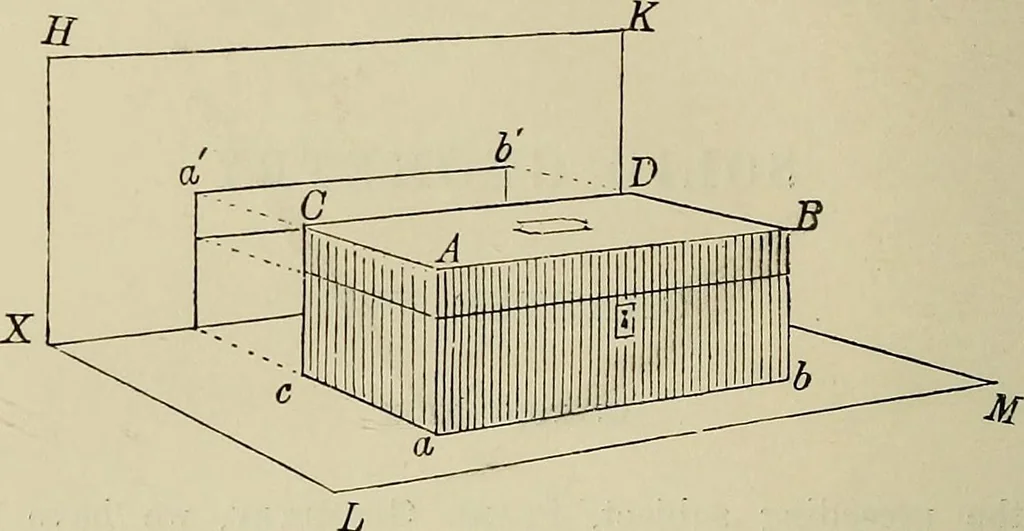

BCD, Fig. 1, and having procured a stiff piece of drawing-paper HKLM, fold it in a line at X, parallel to one of its edges ;then open it at a right angle, so that HX will represent theedge of a vertical jplane, and XL the edge of a horizontal plane ; SOLID GEOMETRY the line at X, where the two… … Fiff. 1. Having placed the dressing-case on the horizontal plane,with its back parallel to the vertical plane, let us take a pencil M K X a
